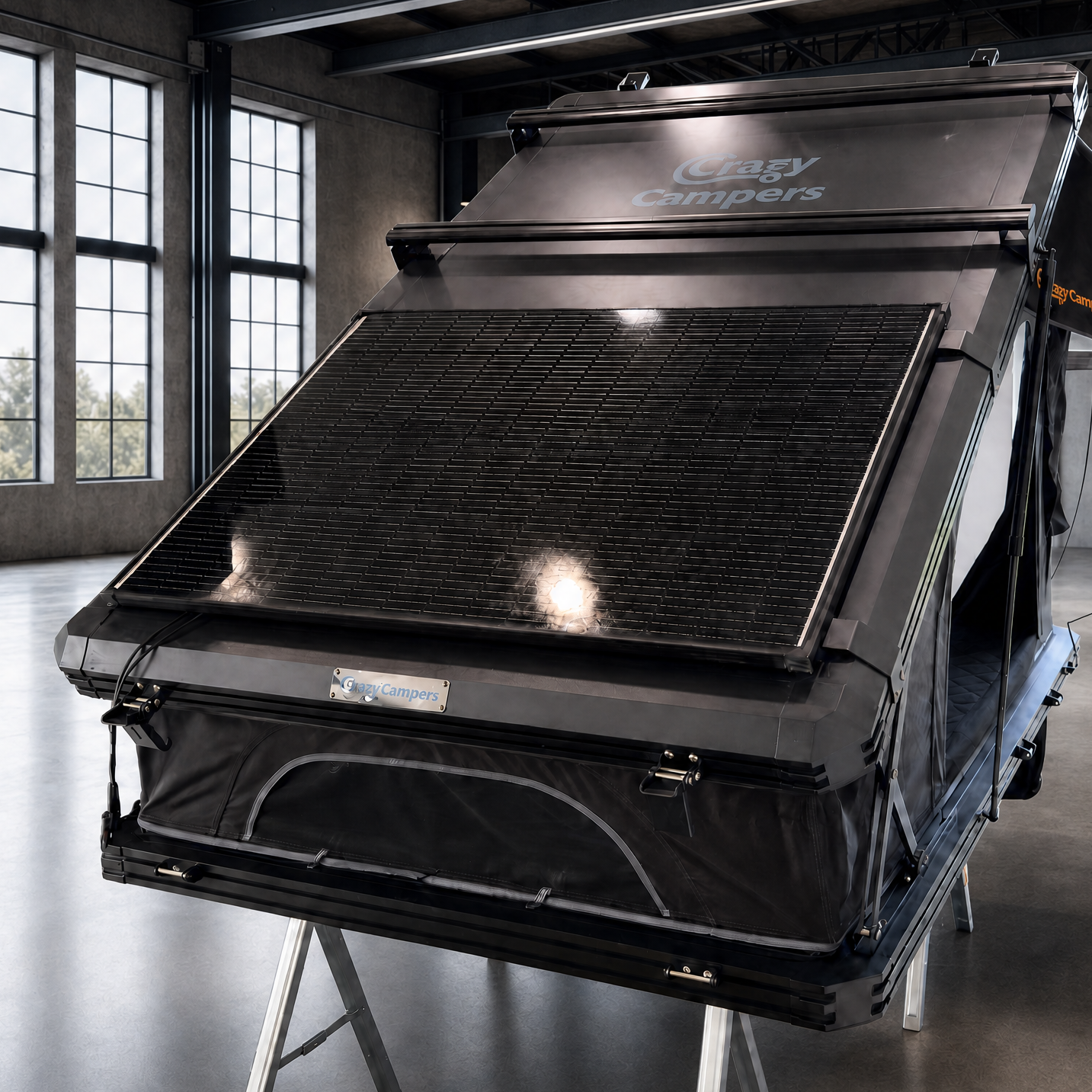

250W Solar Panel & Brackets for 14xx RTTs

Specifications

• Maximum power: 250W
• Vmp: 18.0V
• Imp: 13.89A
• Voc: 22.5V
• Dimensions: 1,330 × 880 × 25 mm
• Weight: 12.9 kg

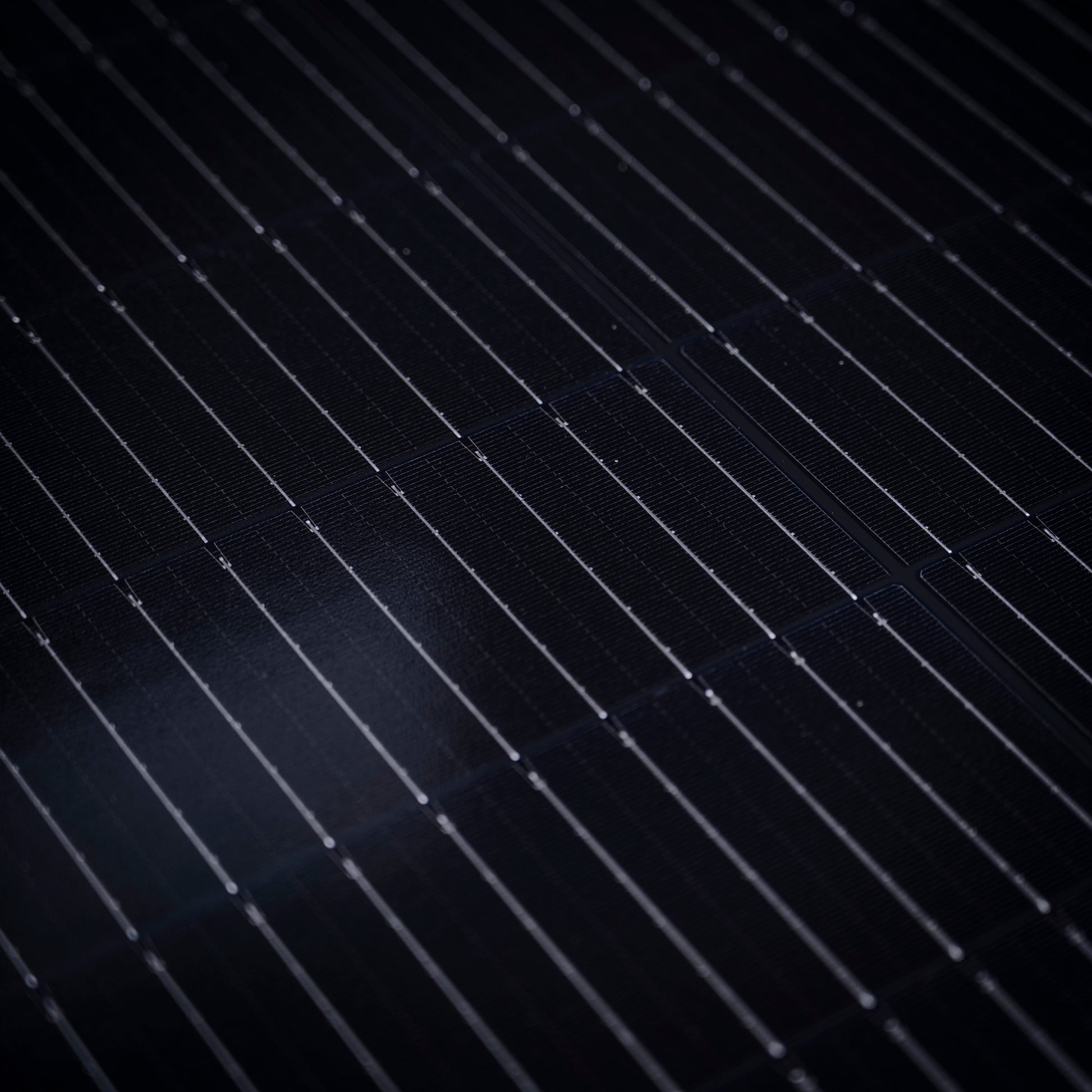

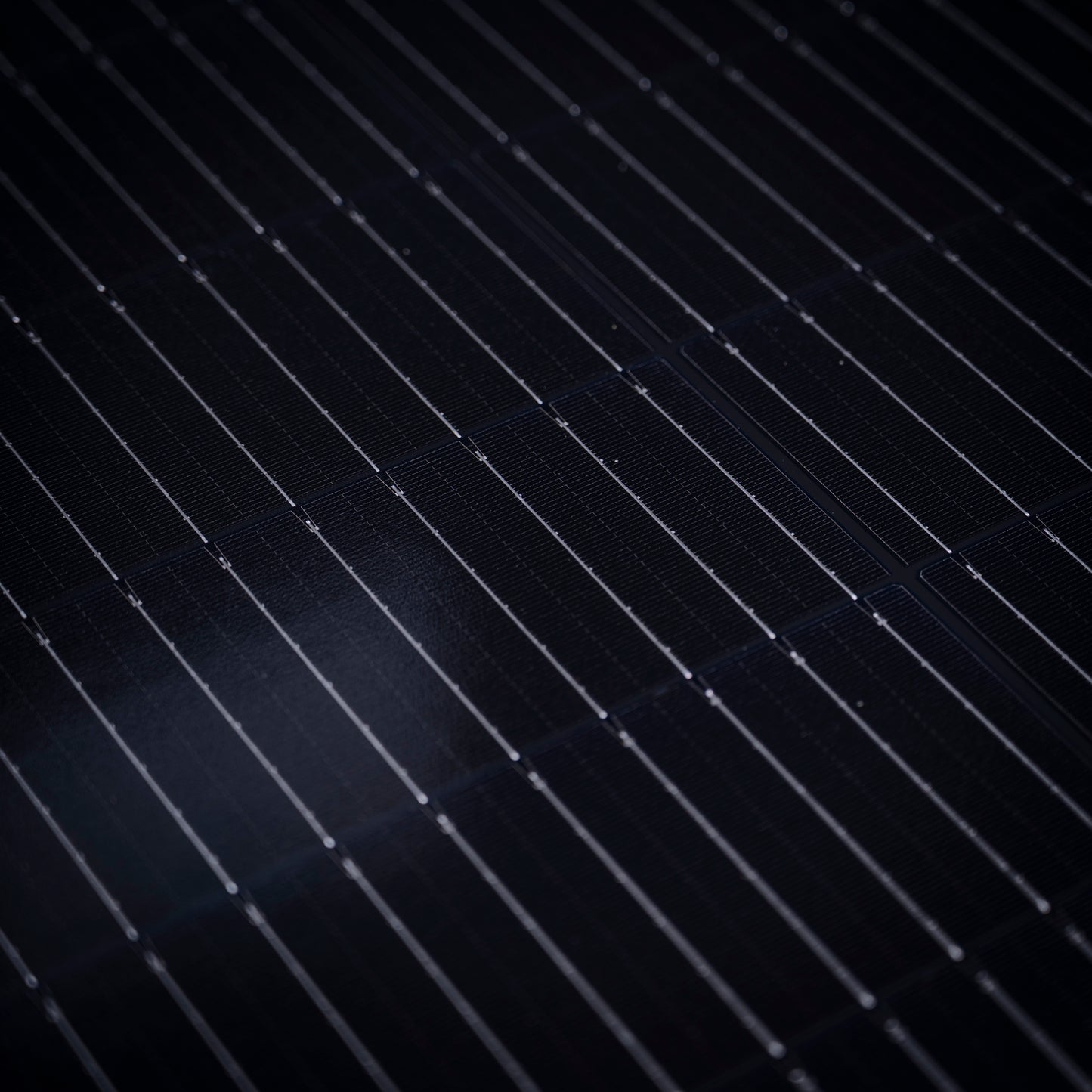

• Cell type: Monocrystalline, 12BB half-cell

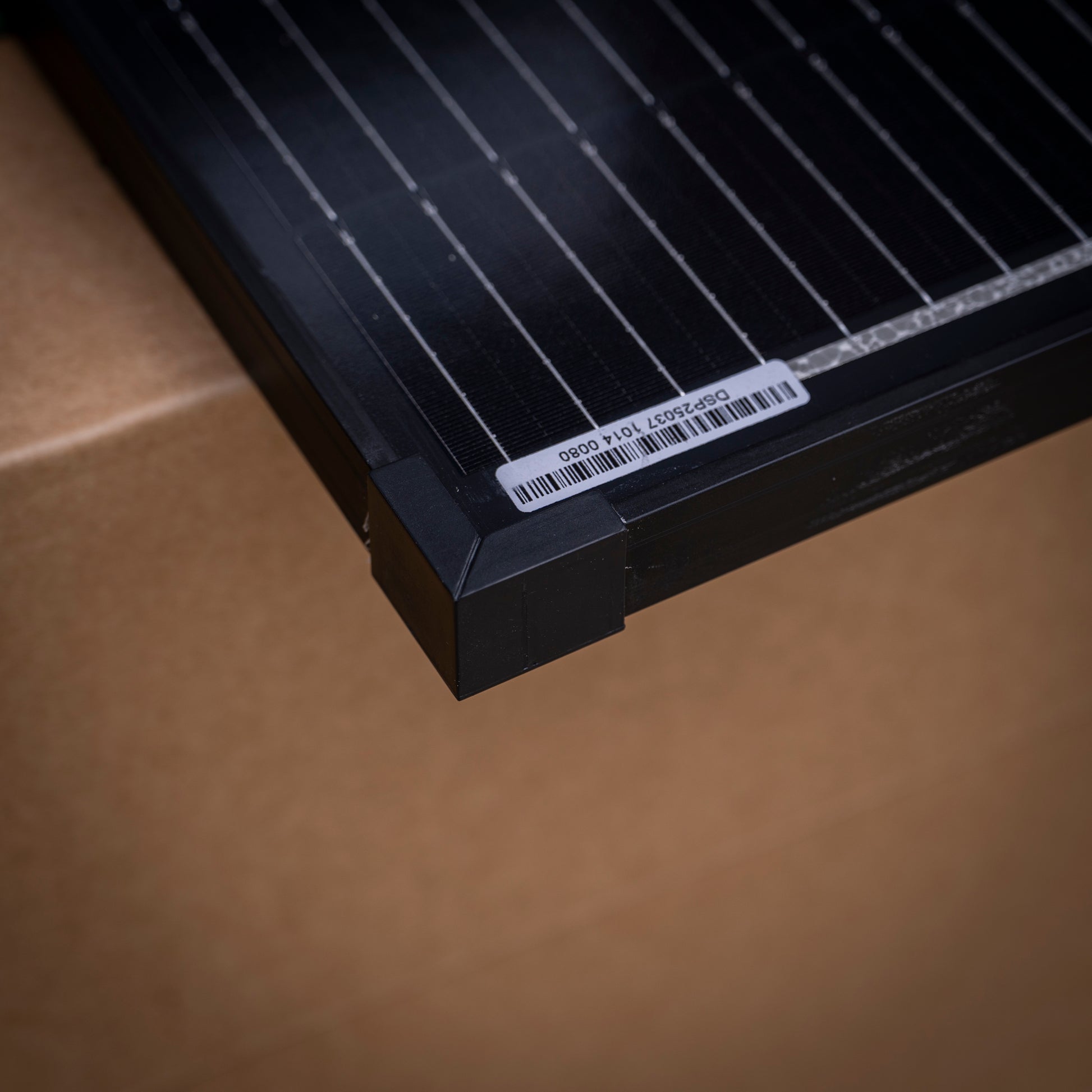

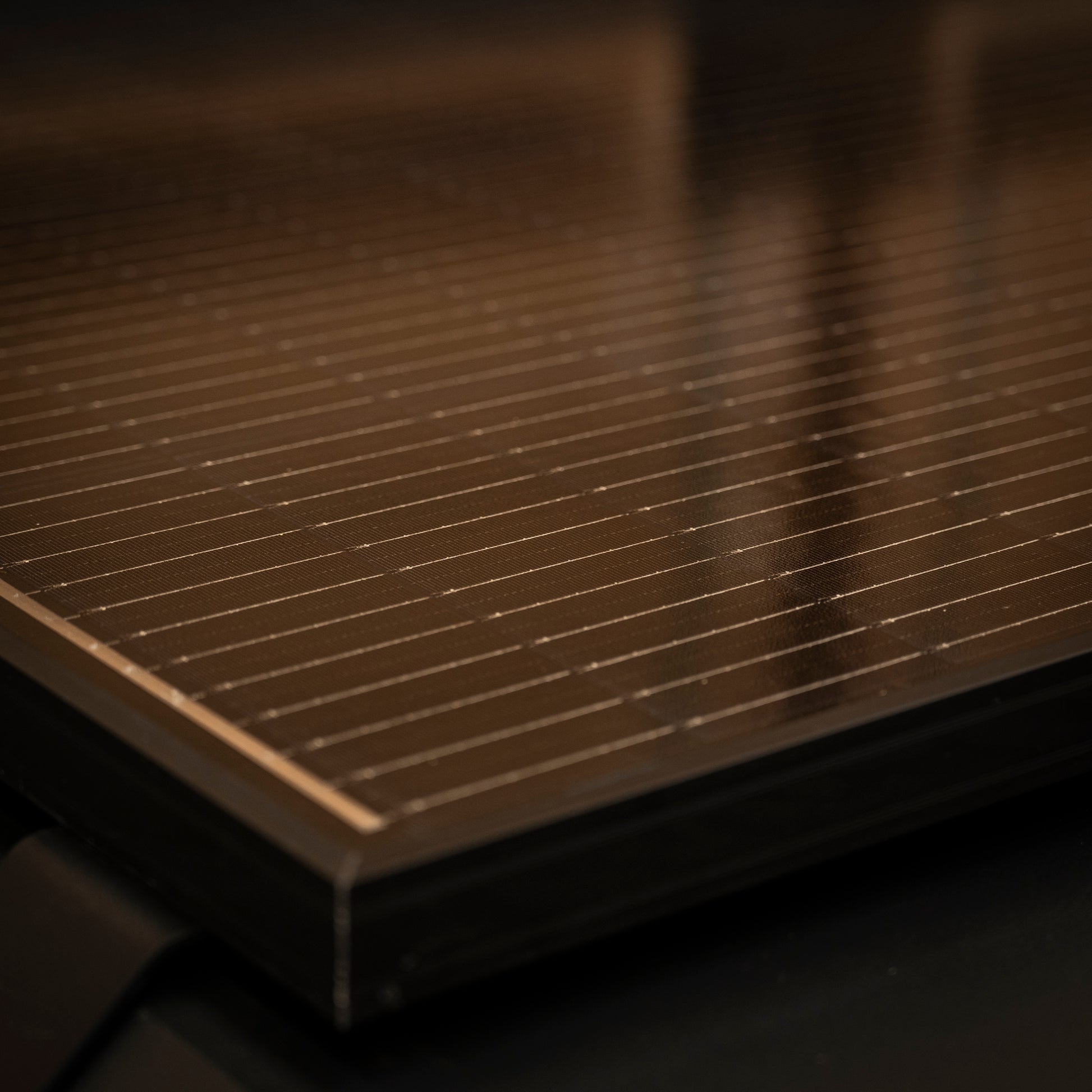

• Construction: Aluminium frame with tempered glass

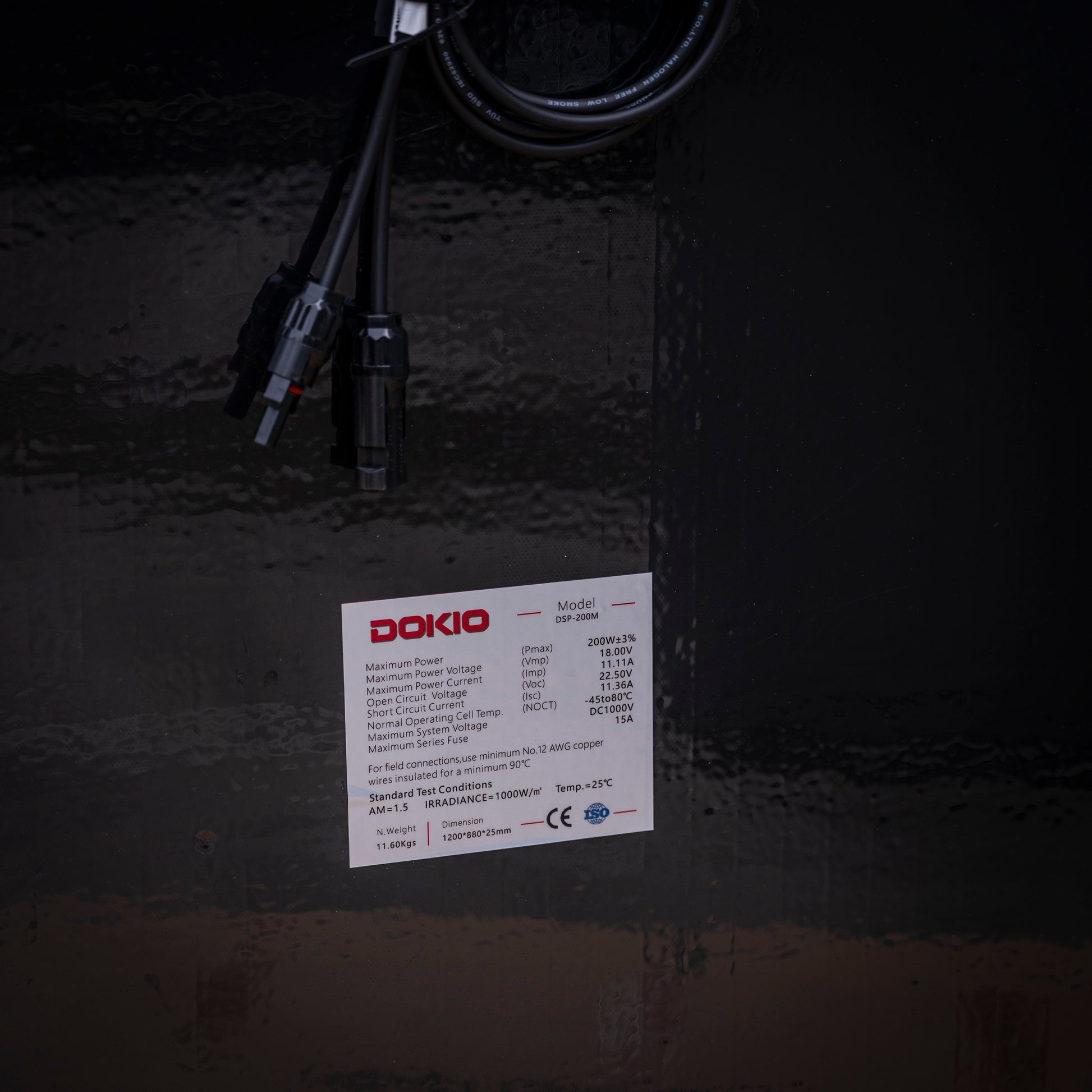

• Connectors: MC4 waterproof connectors
• Compatible rooftop tents: TrailReady 1450 and Overland X 1490

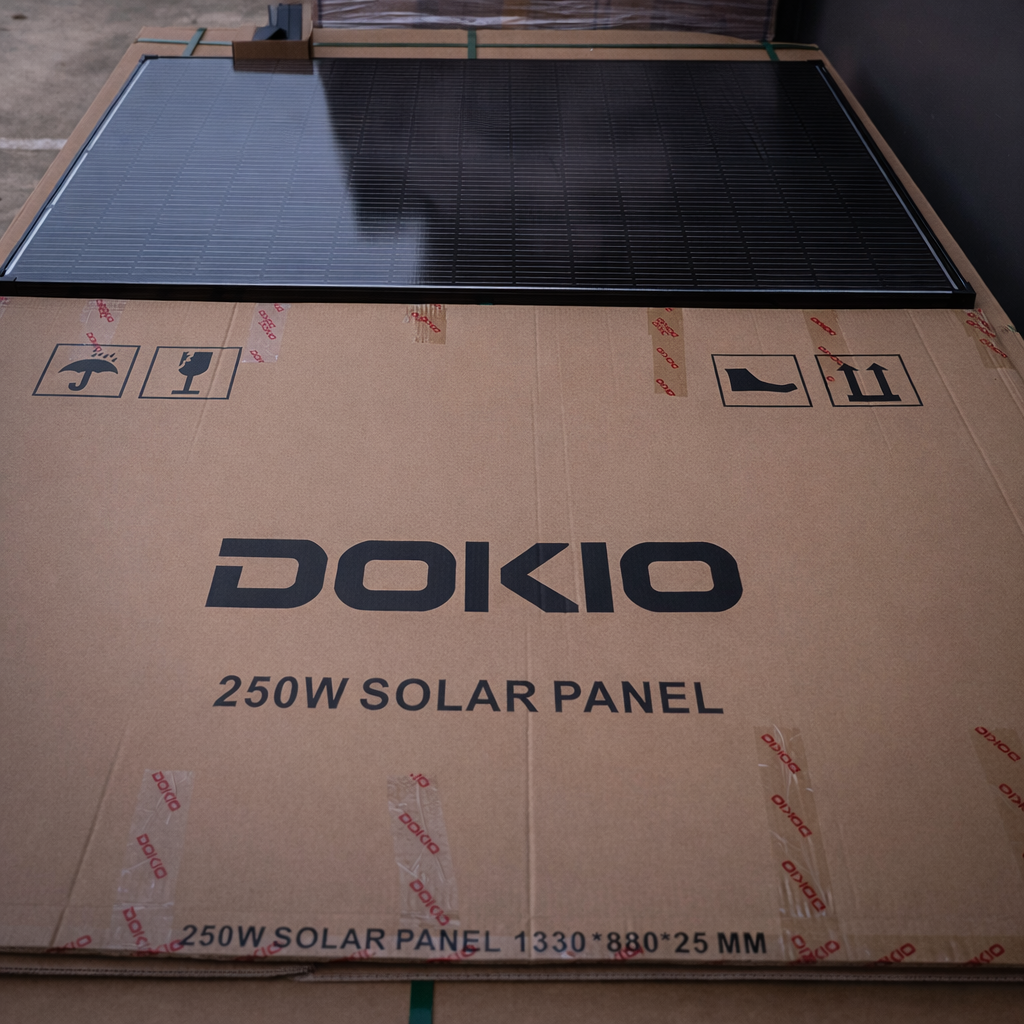

• Package: 250W rigid solar panel with matching RTT brackets

Use the Wider Roof Platform for More Solar

This 250W rigid solar panel is sized for the wider roof platforms of the TrailReady 1450 and Overland X 1490 rooftop tents, providing a matched option for touring setups with higher off-grid power requirements.

Monocrystalline cells and a 12BB half-cell layout are designed to reduce resistive losses, while the aluminium frame, tempered glass and MC4 connectors suit permanent outdoor installation when correctly fitted.

Key Features

• 250W rated maximum output
• Matched to compatible 1450 and 1490 rooftop tent platforms
• Rigid aluminium and tempered-glass construction
• MC4 connectors for common solar wiring configurations

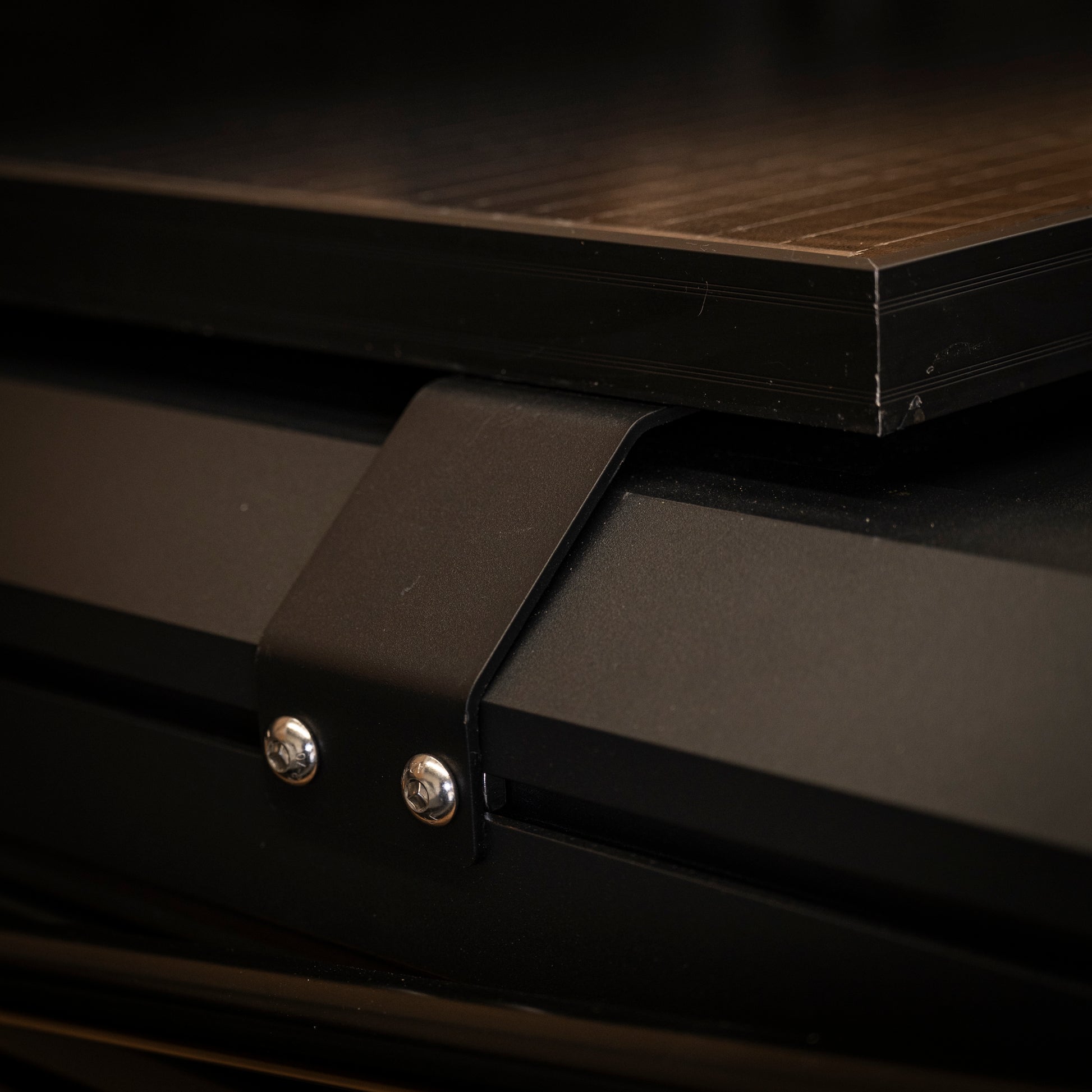

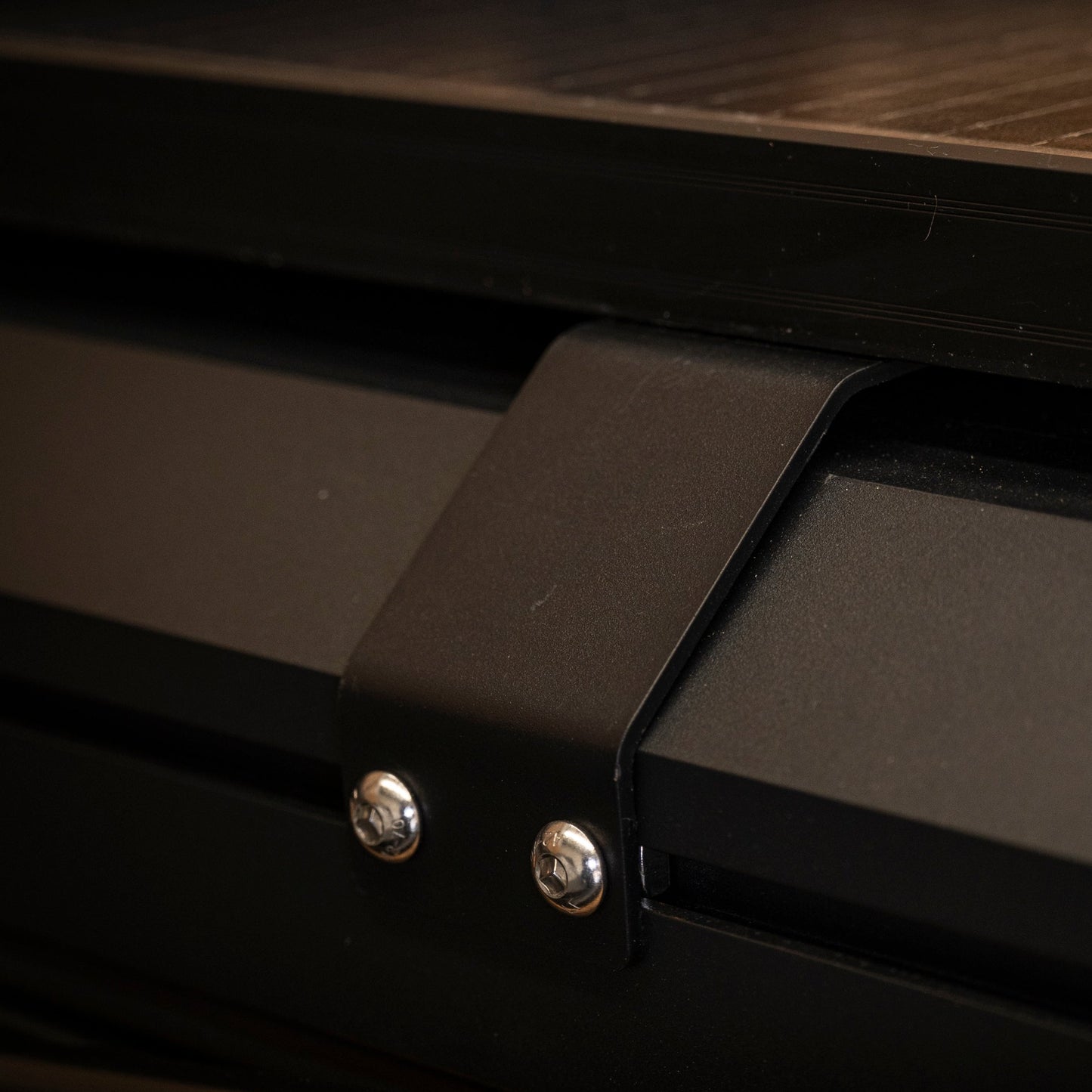

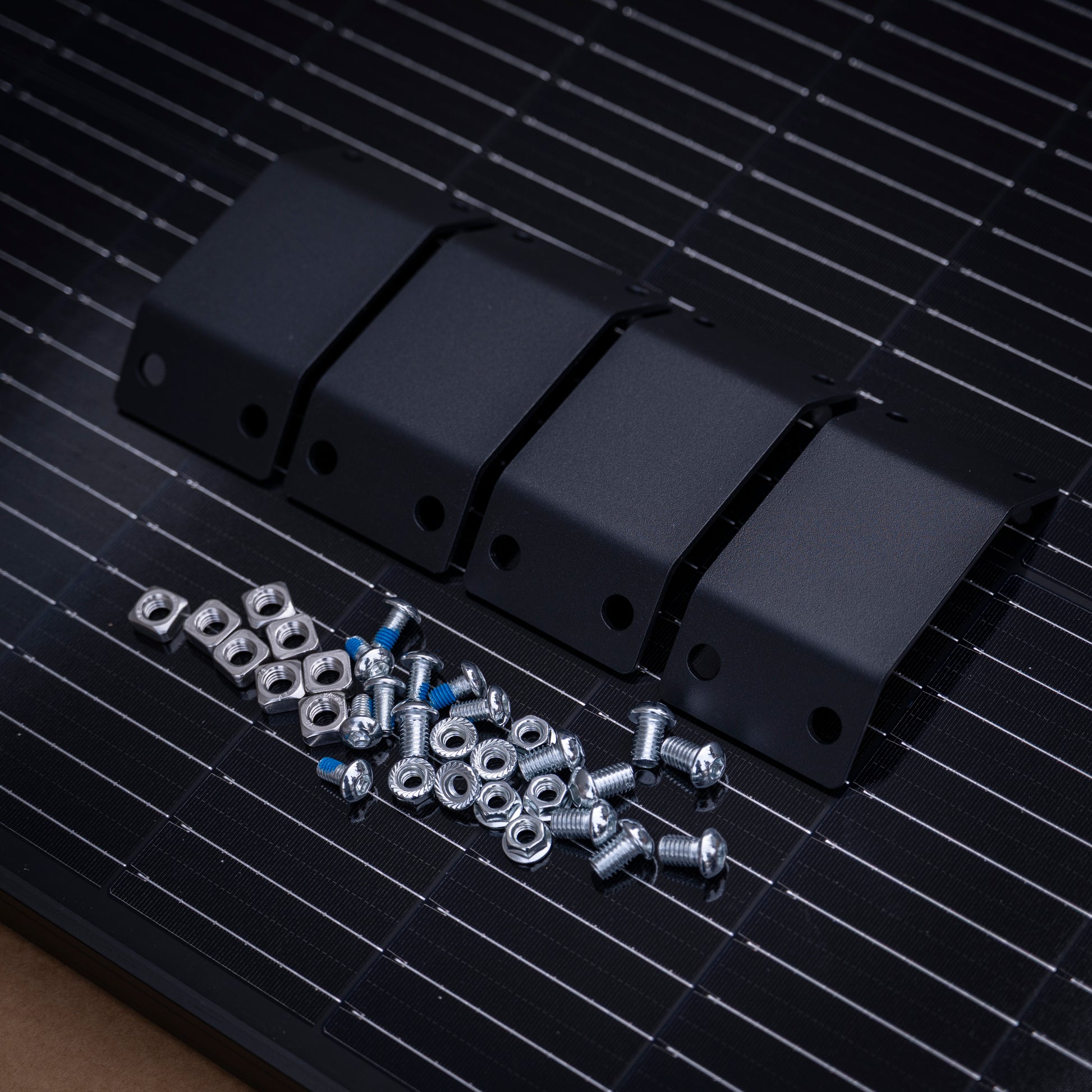

• Matching rooftop tent mounting brackets included

Fitment and Electrical Note

Confirm panel dimensions, rooftop tent compatibility, roof-load limits, bracket position and mounting hardware before installation. Use a compatible solar charge controller and wiring sized for your system. Installation by a suitably competent person is recommended.
