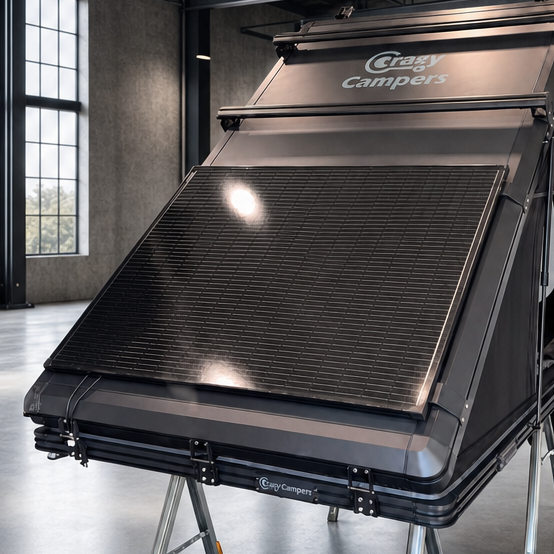

200W Solar Panel & Brackets for 13xx RTTs

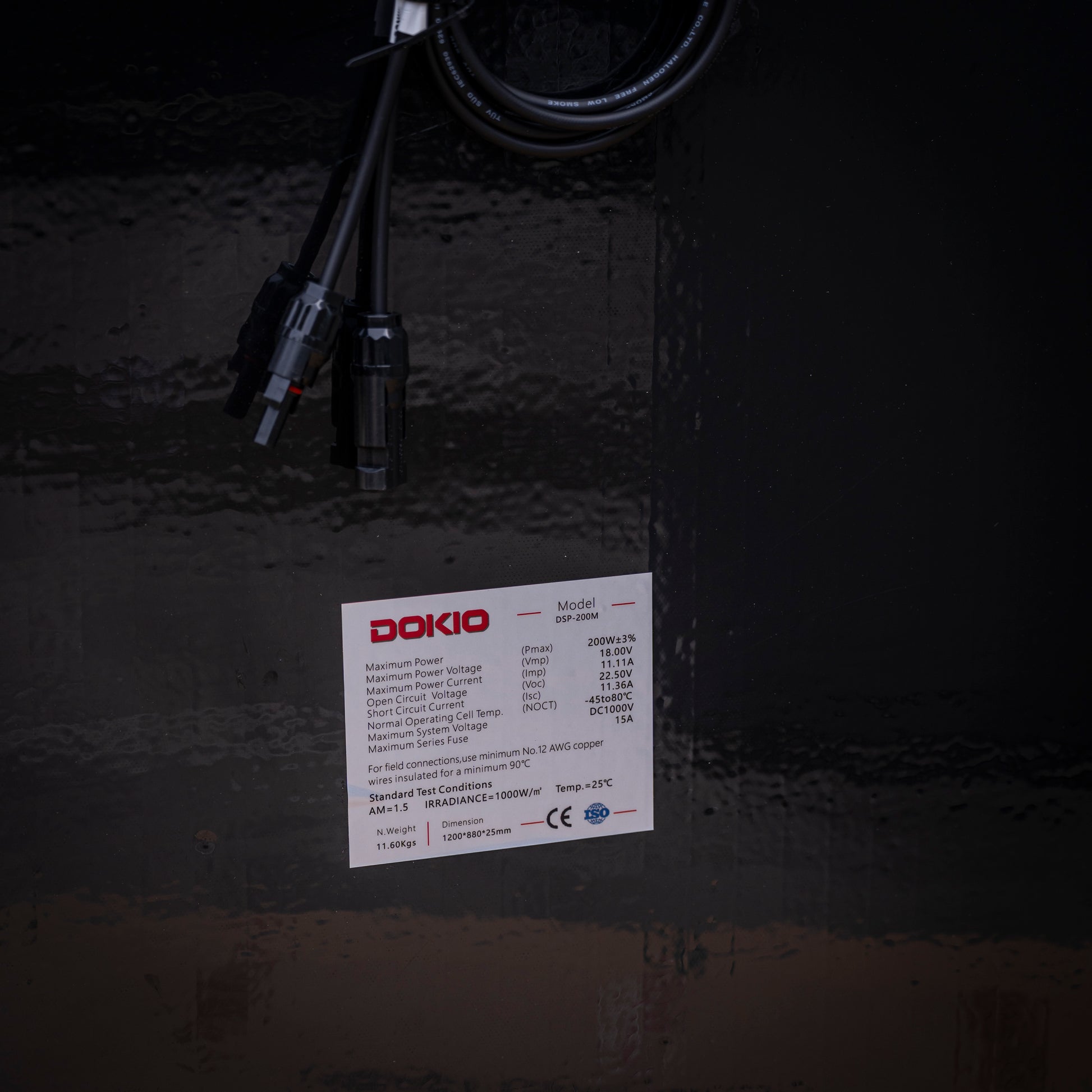

Specifications

• Maximum power: 200W
• Vmp: 18.0V
• Imp: 11.11A
• Voc: 22.5V
• Dimensions: 1,200 × 880 × 25 mm
• Weight: 11.6 kg

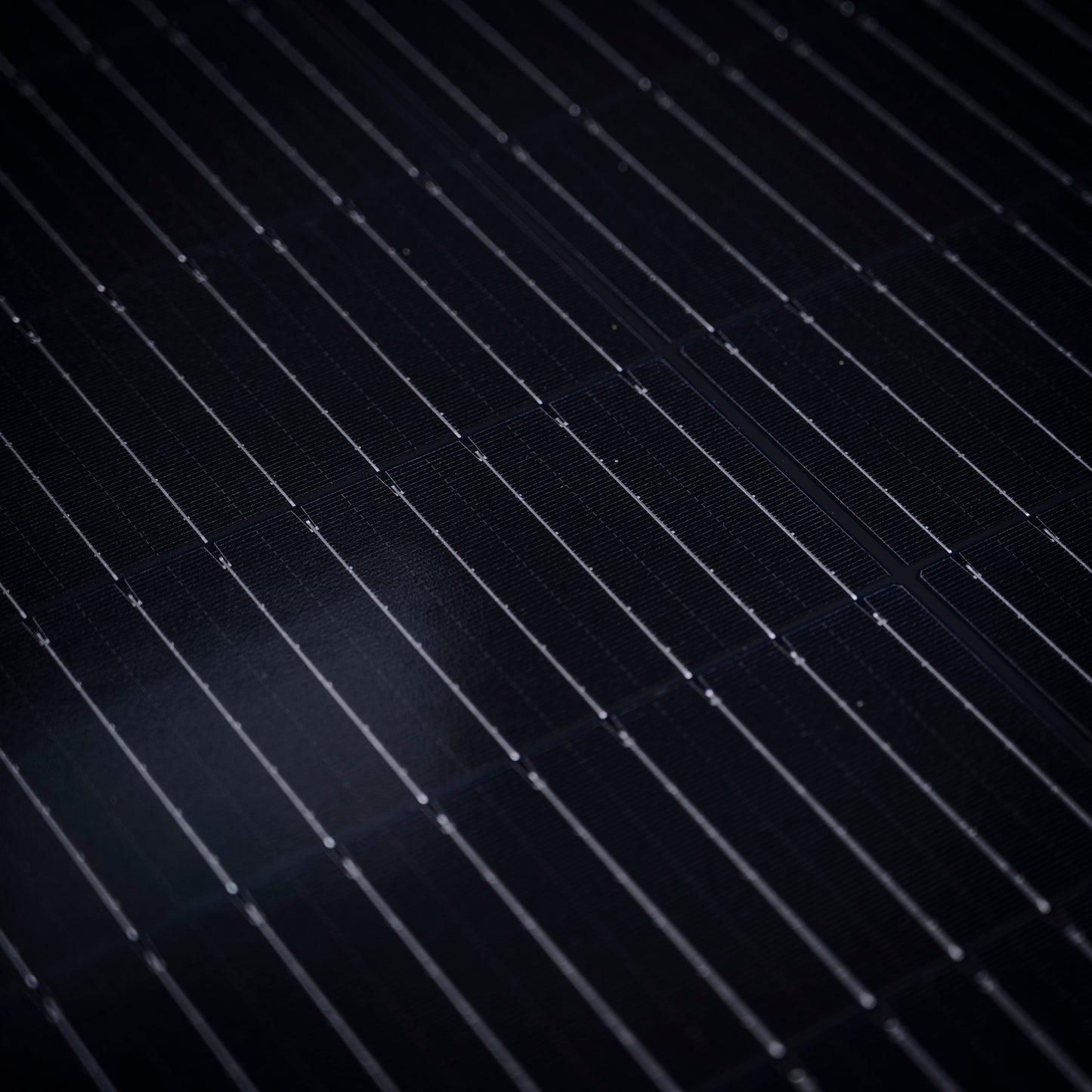

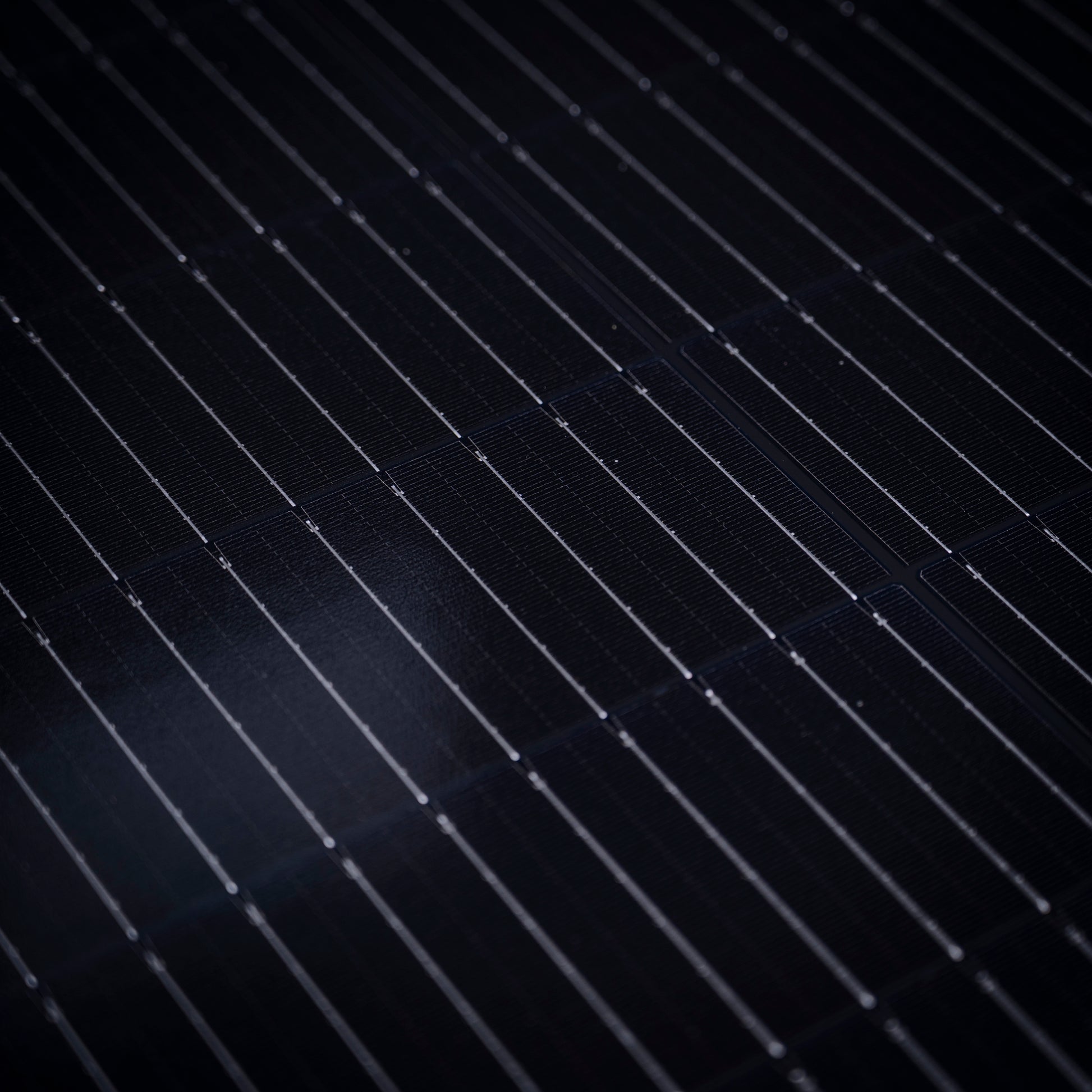

• Cell type: Monocrystalline, 12BB half-cell

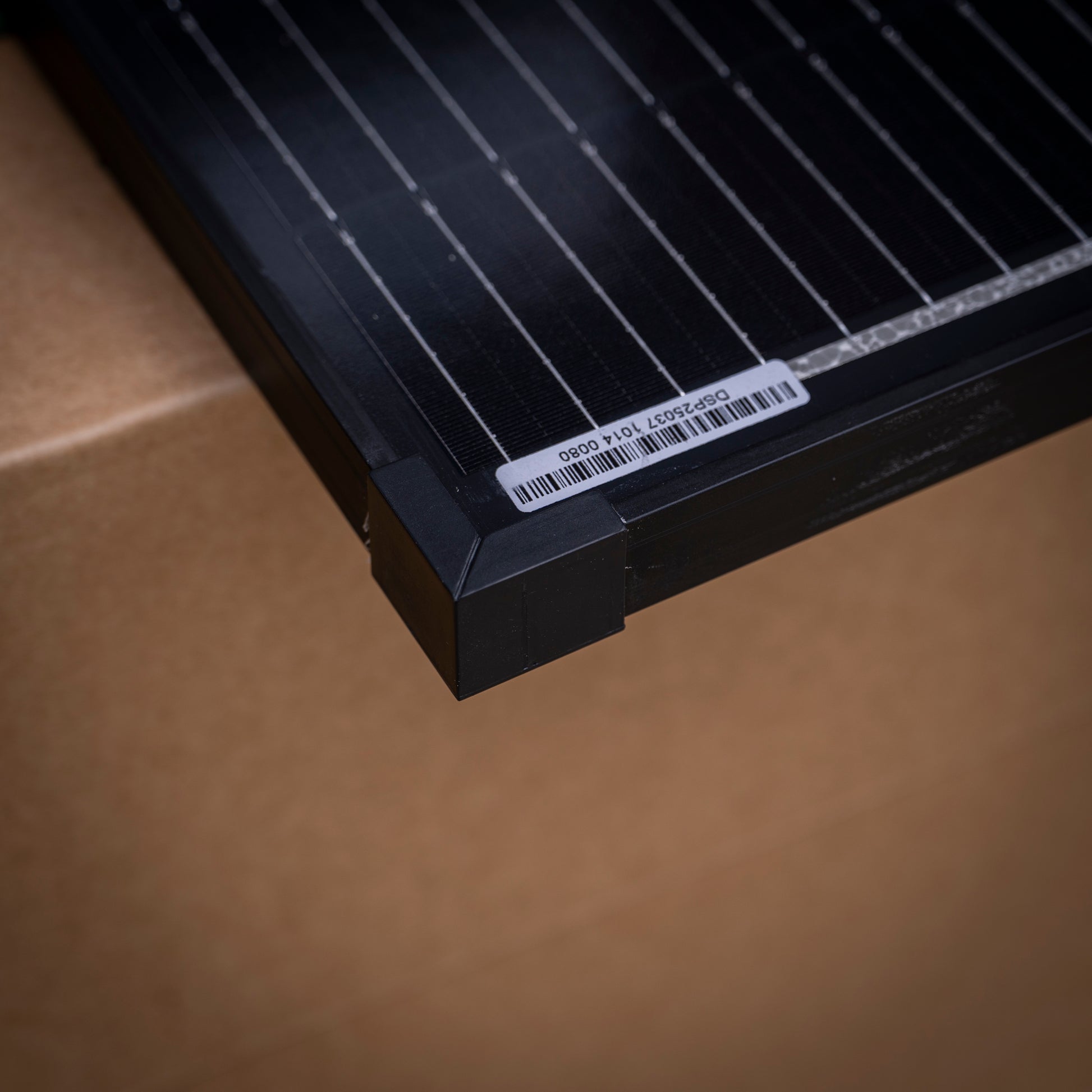

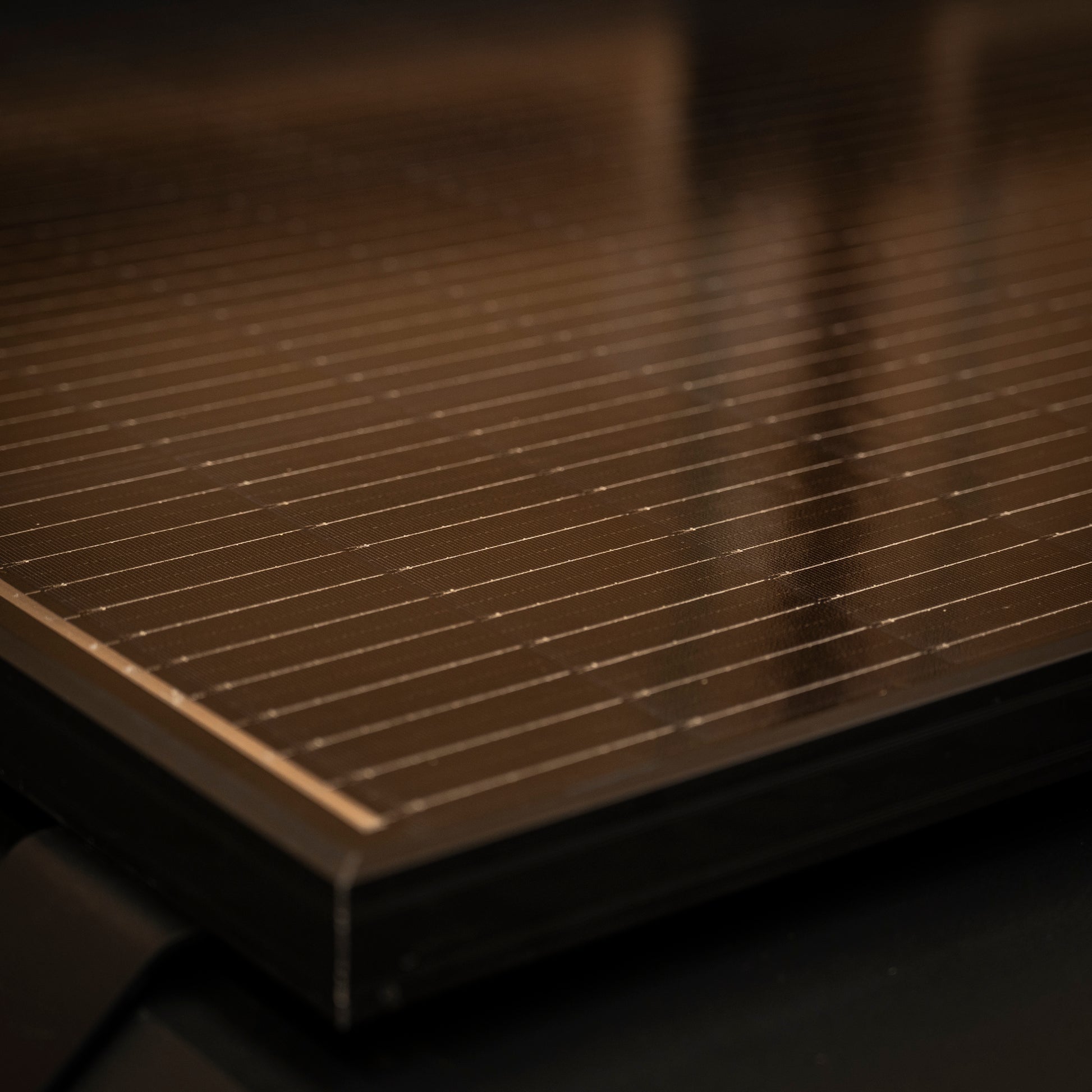

• Construction: Aluminium frame with tempered glass
• Connectors: MC4 waterproof connectors
• Compatible rooftop tents: TrailReady 1310 and Overland X 1380

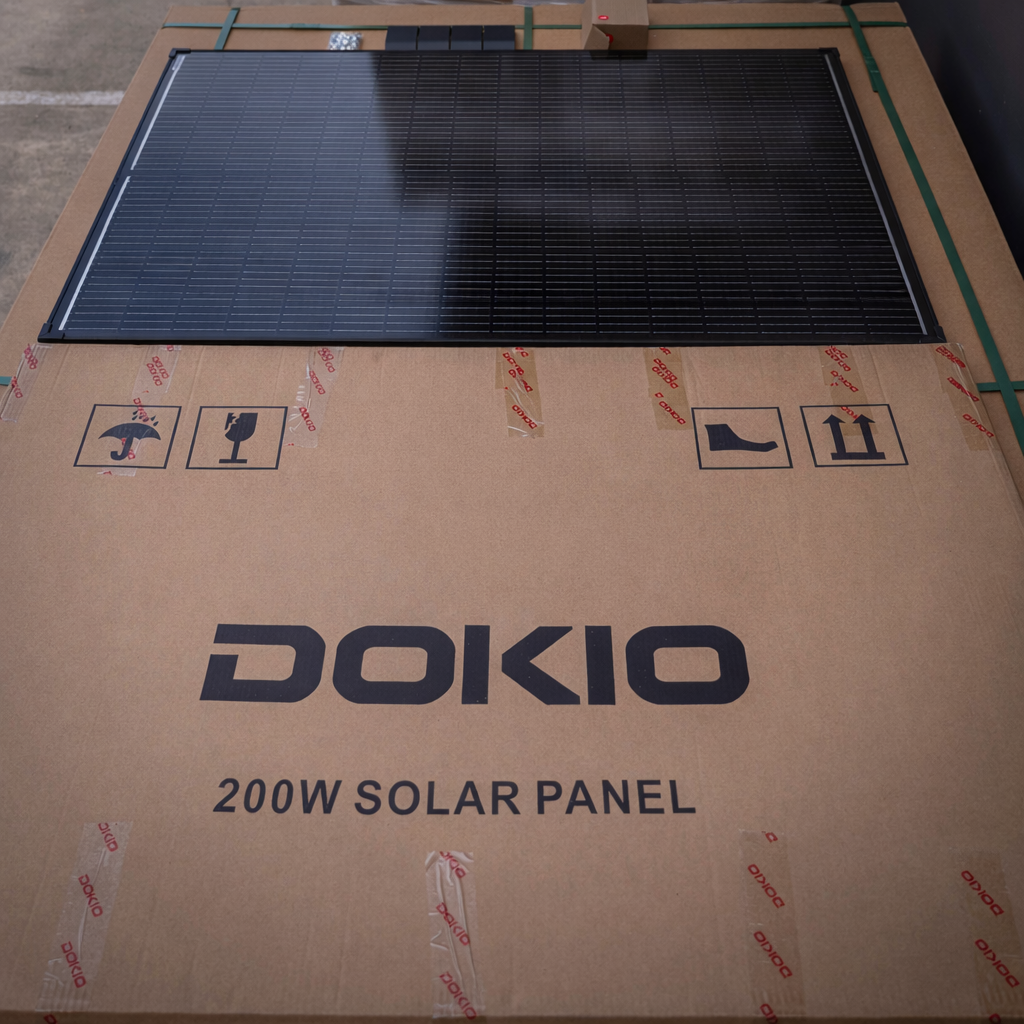

• Package: 200W rigid solar panel with matching RTT brackets

Rooftop Solar Sized for the 1310 and 1380 Platforms

This 200W rigid solar panel is sized for compatible TrailReady 1310 and Overland X 1380 rooftop tents, balancing panel area, weight and useful output within the available roof platform.

Monocrystalline cells and a 12BB half-cell layout are designed to reduce resistive losses, while the aluminium frame, tempered glass and MC4 connectors suit permanent outdoor installation when correctly fitted.

Key Features

• 200W rated maximum output
• Matched to compatible TrailReady 1310 and Overland X 1380 platforms
• Rigid aluminium and tempered-glass construction
• MC4 connectors for common solar wiring configurations

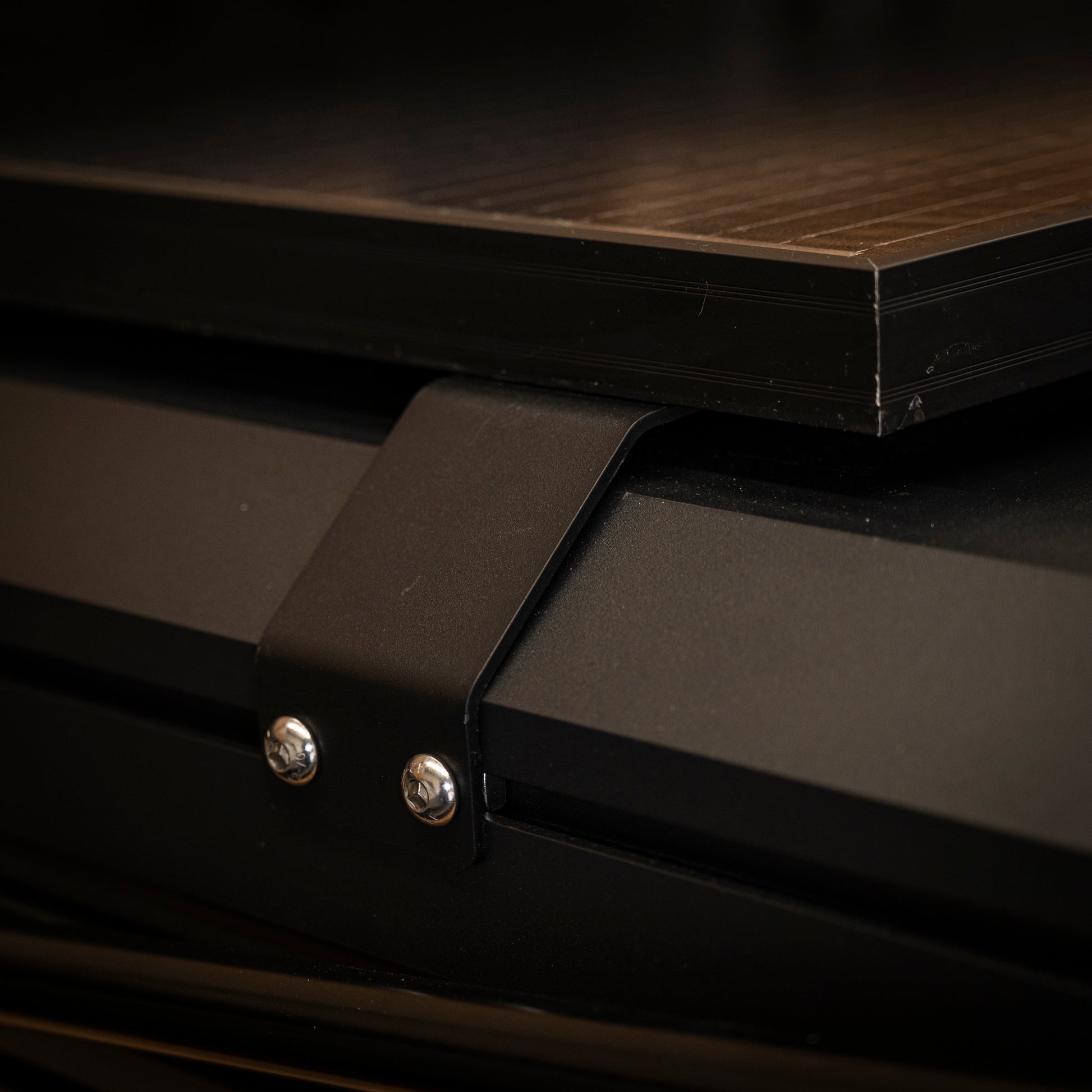

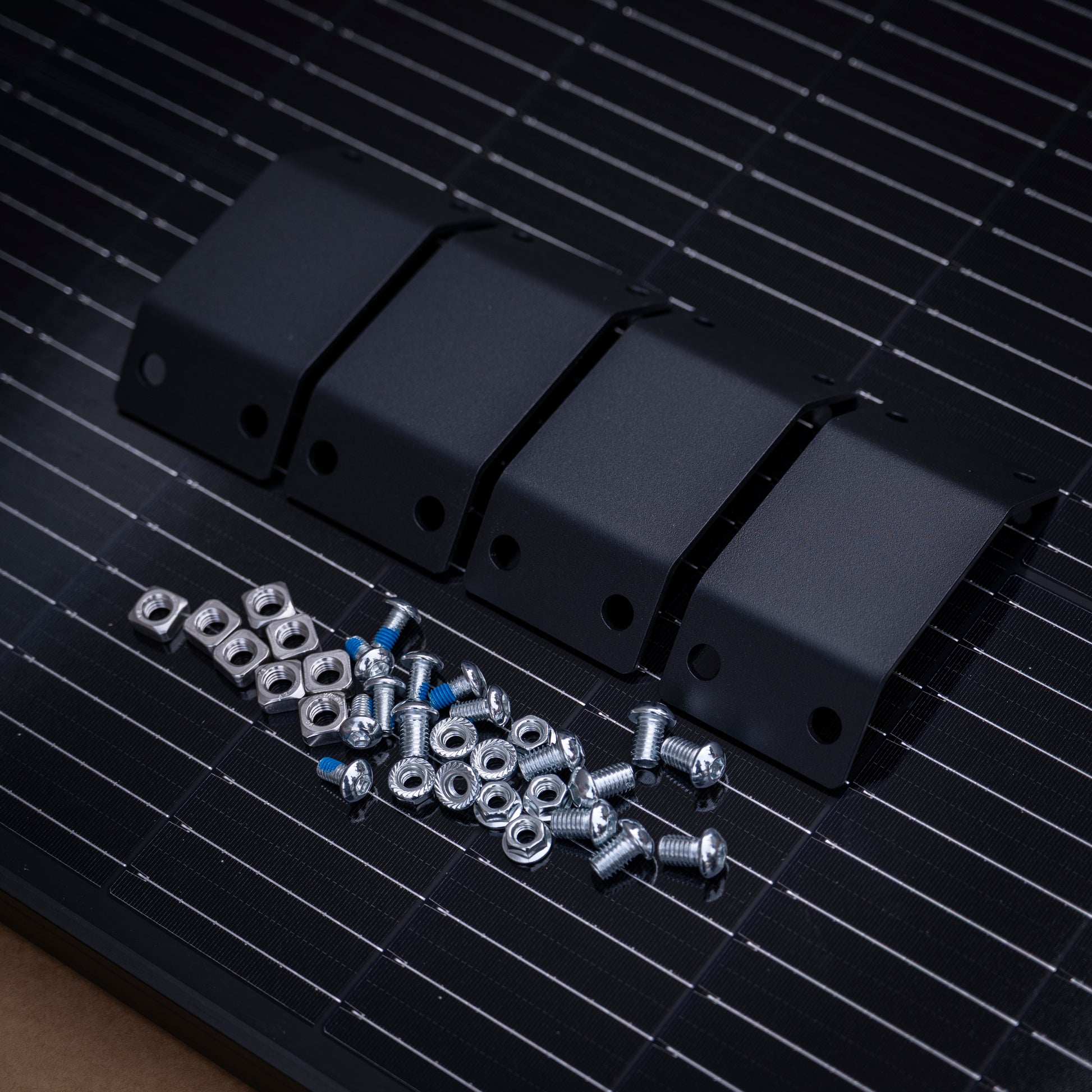

• Matching rooftop tent mounting brackets included

Fitment and Electrical Note

Confirm panel dimensions, rooftop tent compatibility, roof-load limits, bracket position and mounting hardware before installation. Use a compatible solar charge controller and wiring sized for your system. Installation by a suitably competent person is recommended.
