200W Flexible Solar Panel

Specifications

• Brand / model: DOKIO DFSP-200M
• Panel type: Flexible solar panel
• Maximum power (Pmax): 200W ±3%
• Maximum power voltage (Vmp): 18.00V
• Maximum power current (Imp): 11.11A
• Open-circuit voltage (Voc): 22.50V
• Short-circuit current (Isc): 11.36A
• Maximum system voltage: 1000V DC
• Maximum series fuse rating: 15A
• Temperature range shown on the manufacturer label: −45°C to +80°C

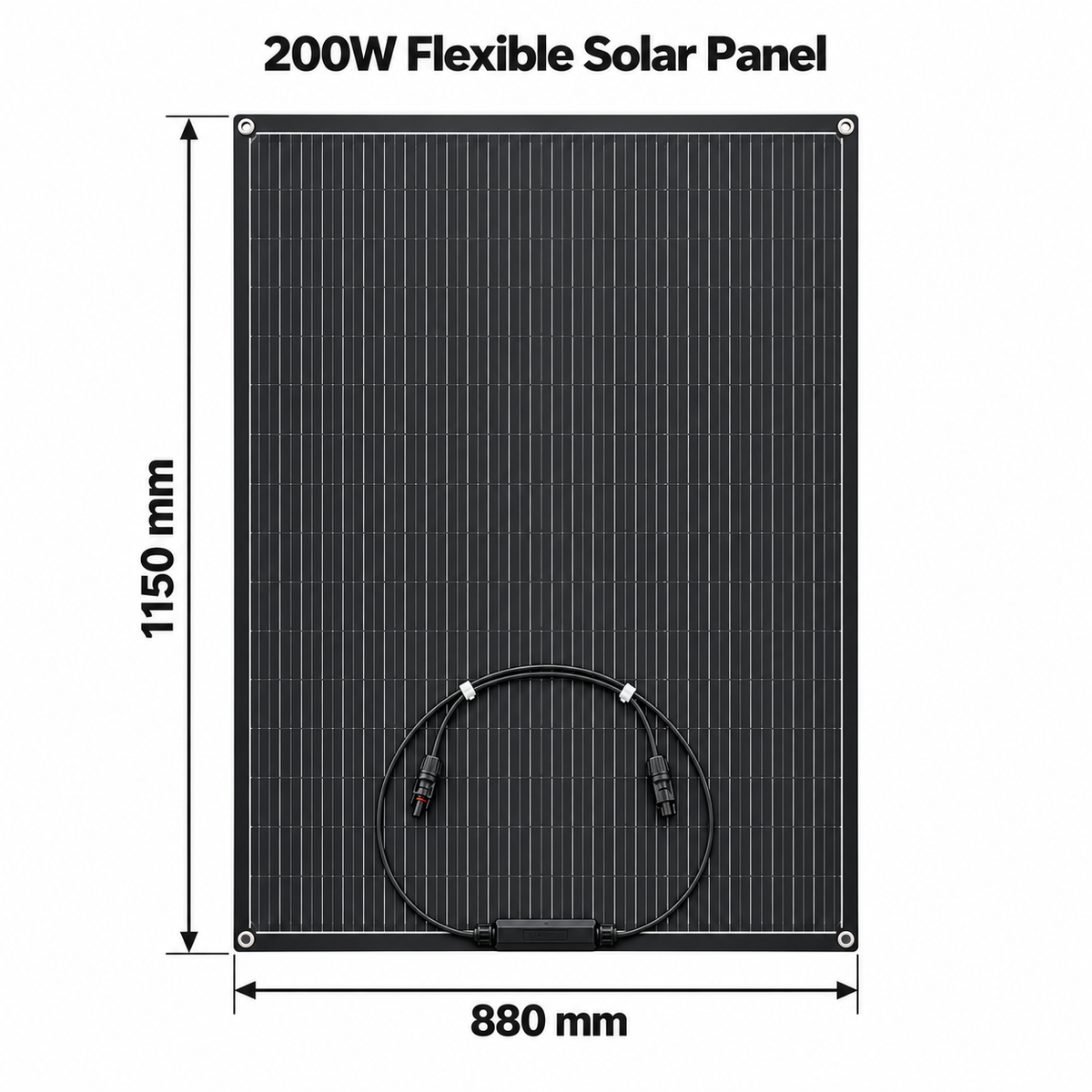

• Panel dimensions: 1150 × 880 mm
• Panel net weight: 1.90 kg

Lightweight solar for your rooftop setup

Add solar to your touring setup with the DOKIO 200W Flexible Solar Panel. Its slim, flexible format and 1.90 kg net weight make it a practical option where keeping roof-mounted weight low matters. Corner eyelets and integrated connection leads provide convenient mounting and connection points.

Key Features

• 200W rated output: Maximum power rating of 200W ±3% under standard test conditions.
• Lightweight format: A 1.90 kg panel with a 1150 × 880 mm footprint.

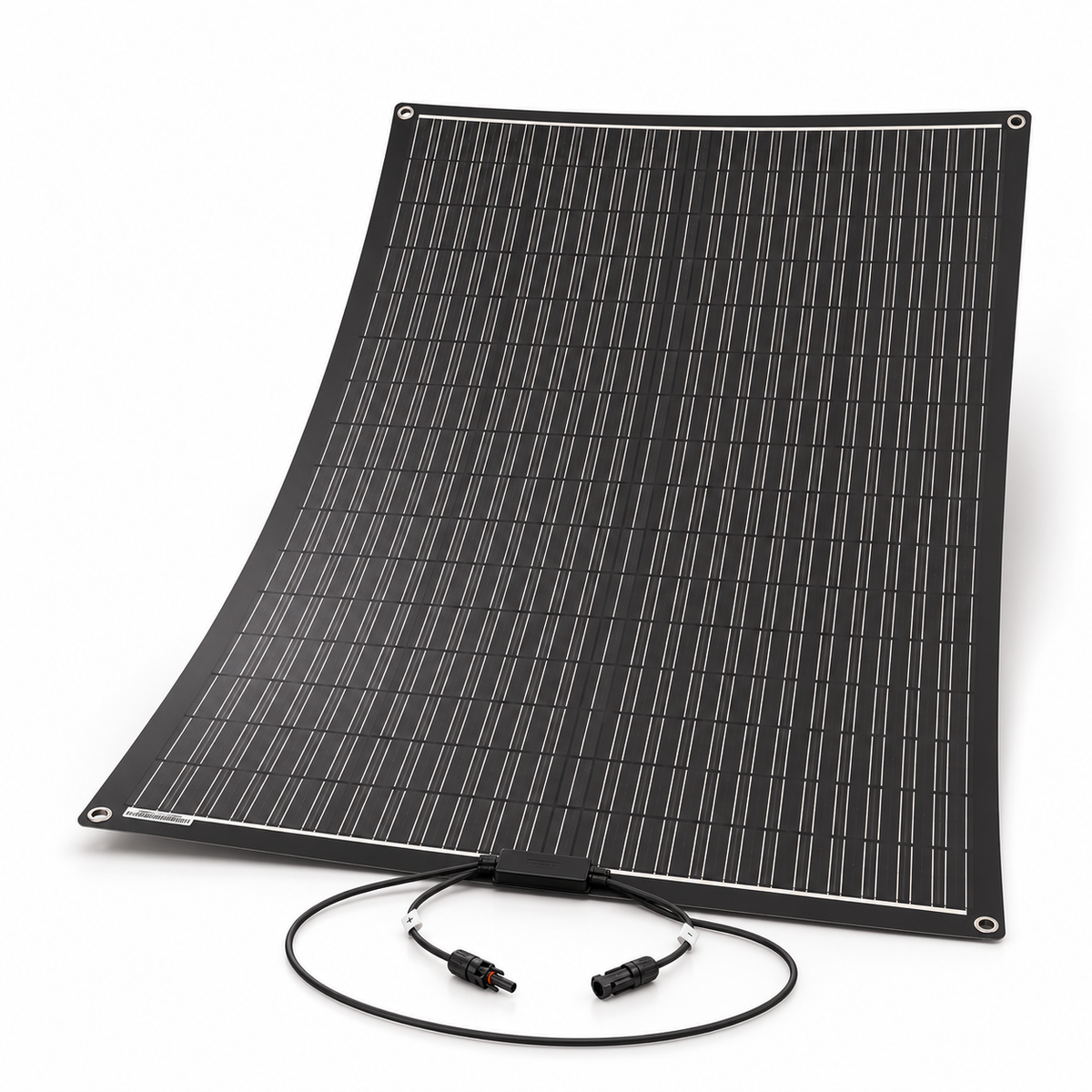

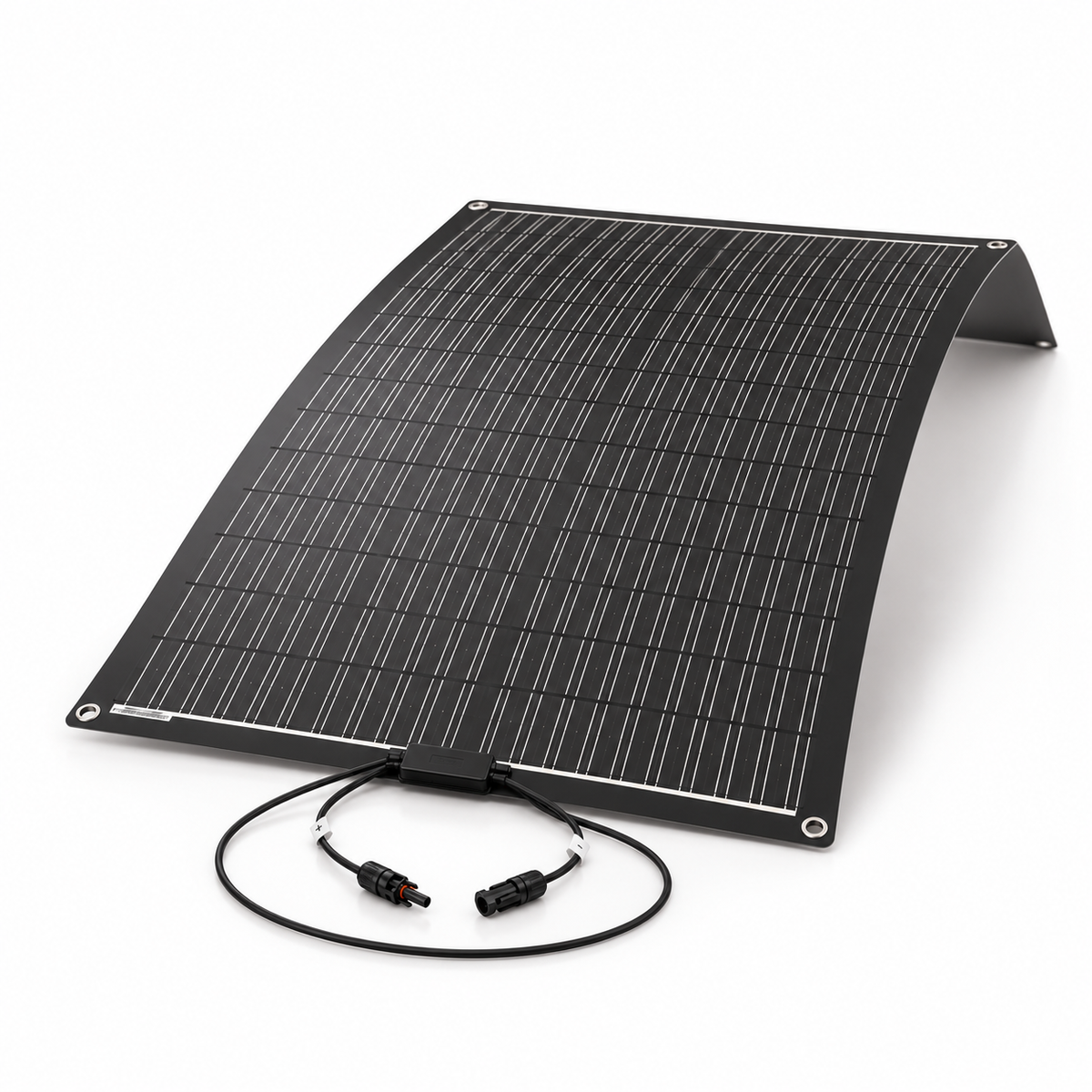

• Low-profile design: Flexible panel construction for a compact rooftop setup.

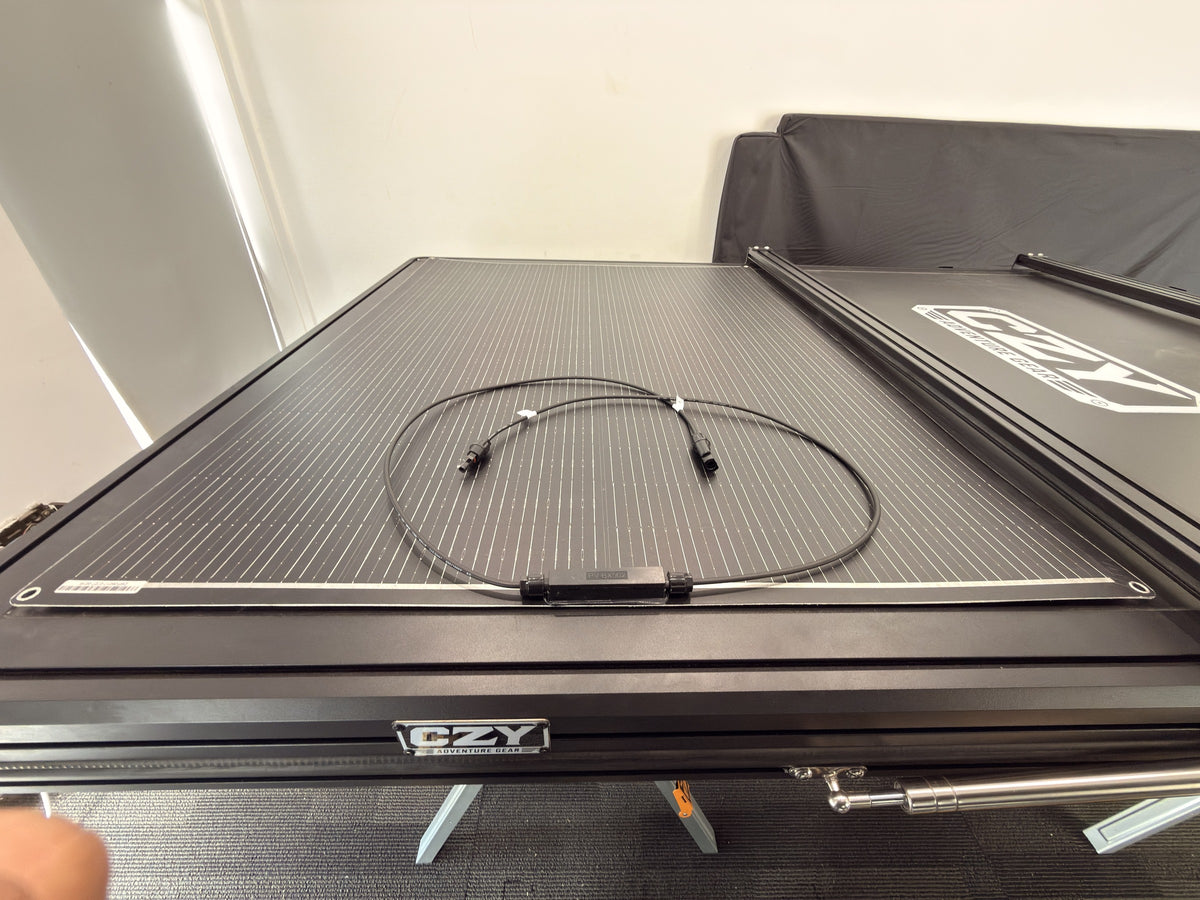

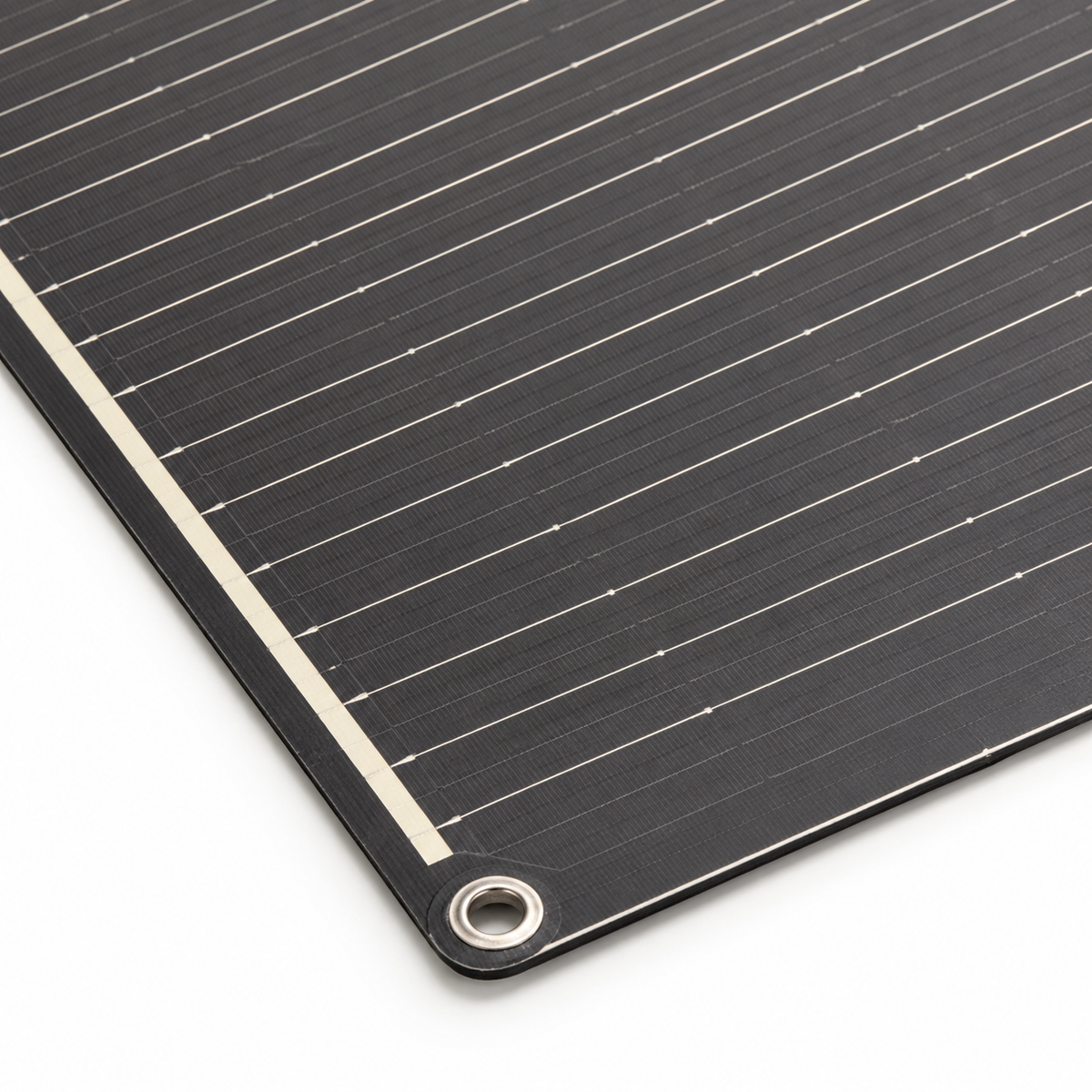

• Mounting and connection points: Corner eyelets and integrated leads.

Installation & Electrical Notes

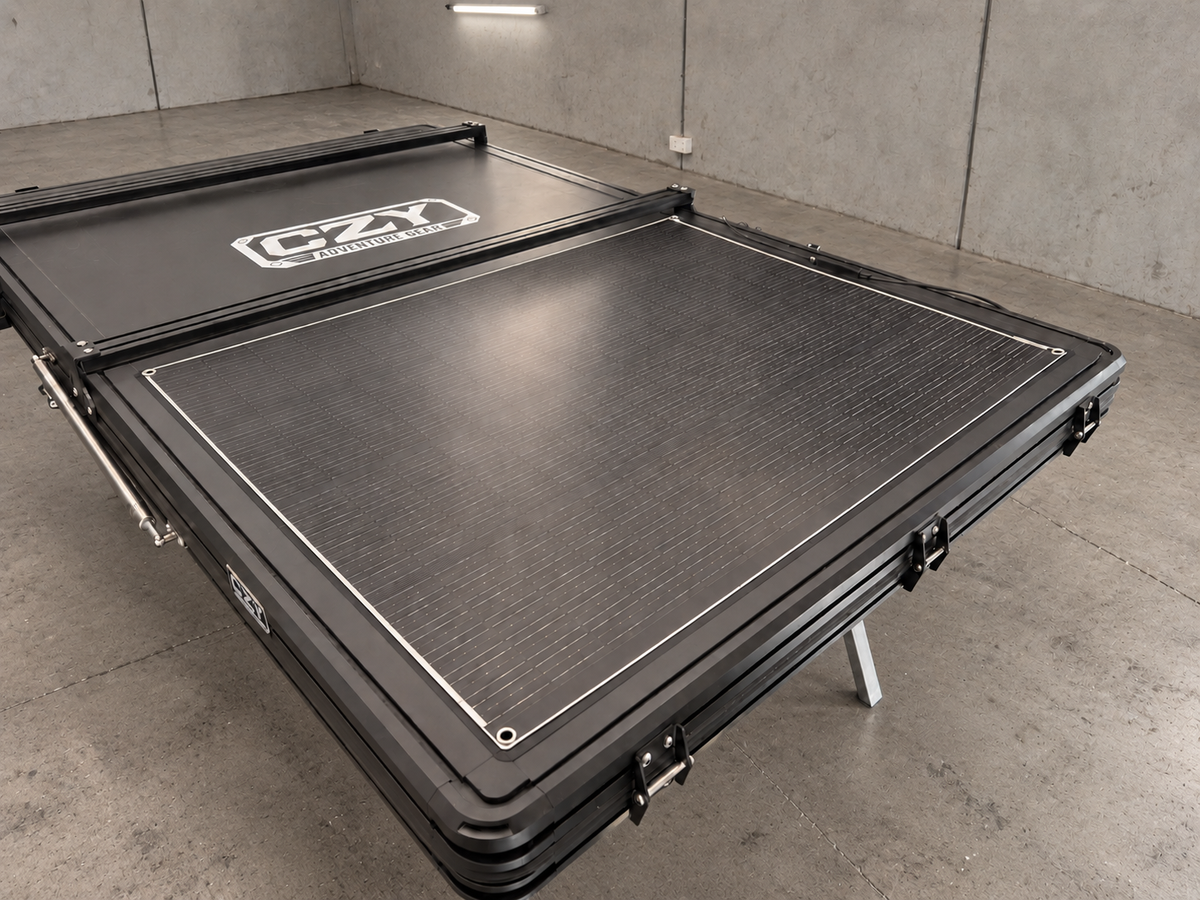

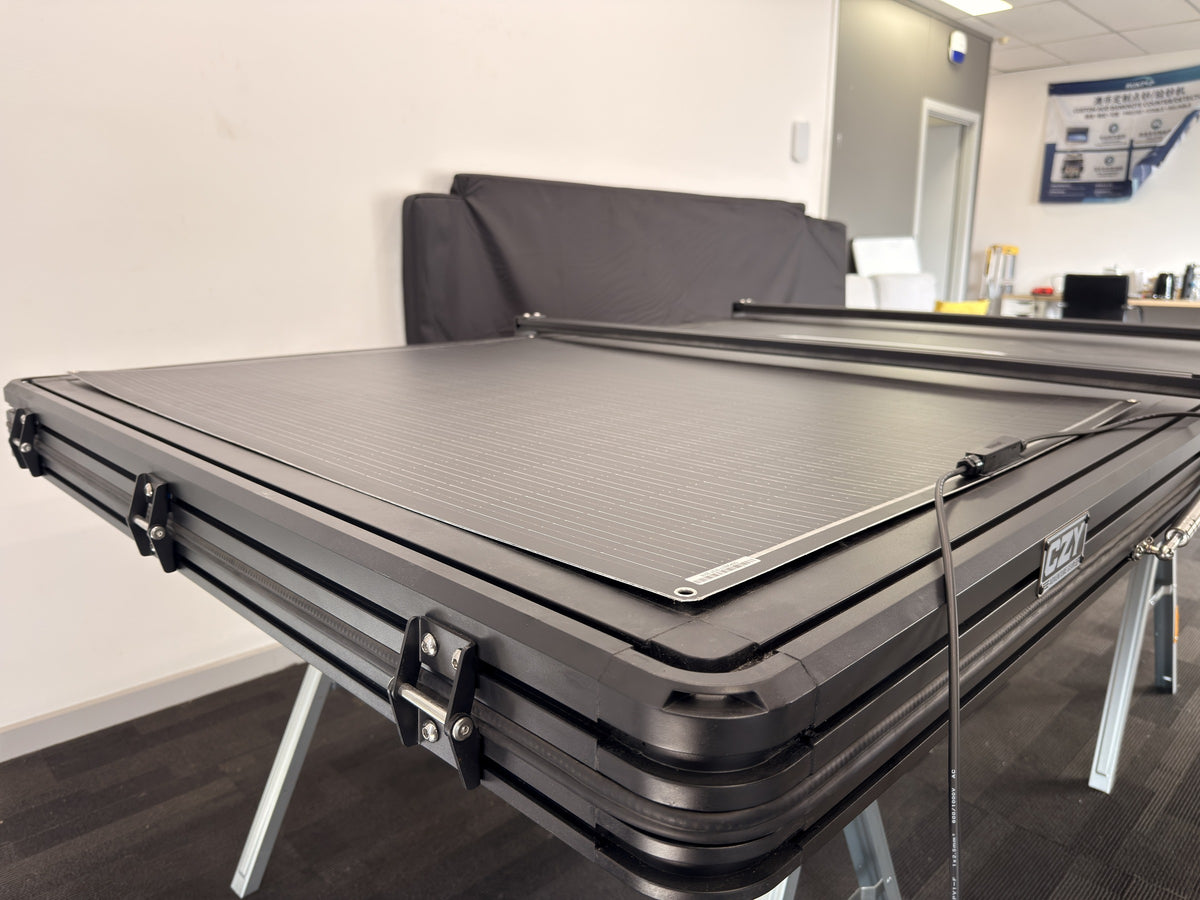

Check the available mounting area and your charging equipment's input limits before installation. The rooftop tent shown is an installation example.

The manufacturer label specifies a minimum of 12 AWG copper wire with insulation rated to at least 90°C for field connections.

Standard test conditions: Air mass 1.5, irradiance 1000W/m² and cell temperature 25°C. Actual output varies with sunlight, temperature, shading and installation conditions.
