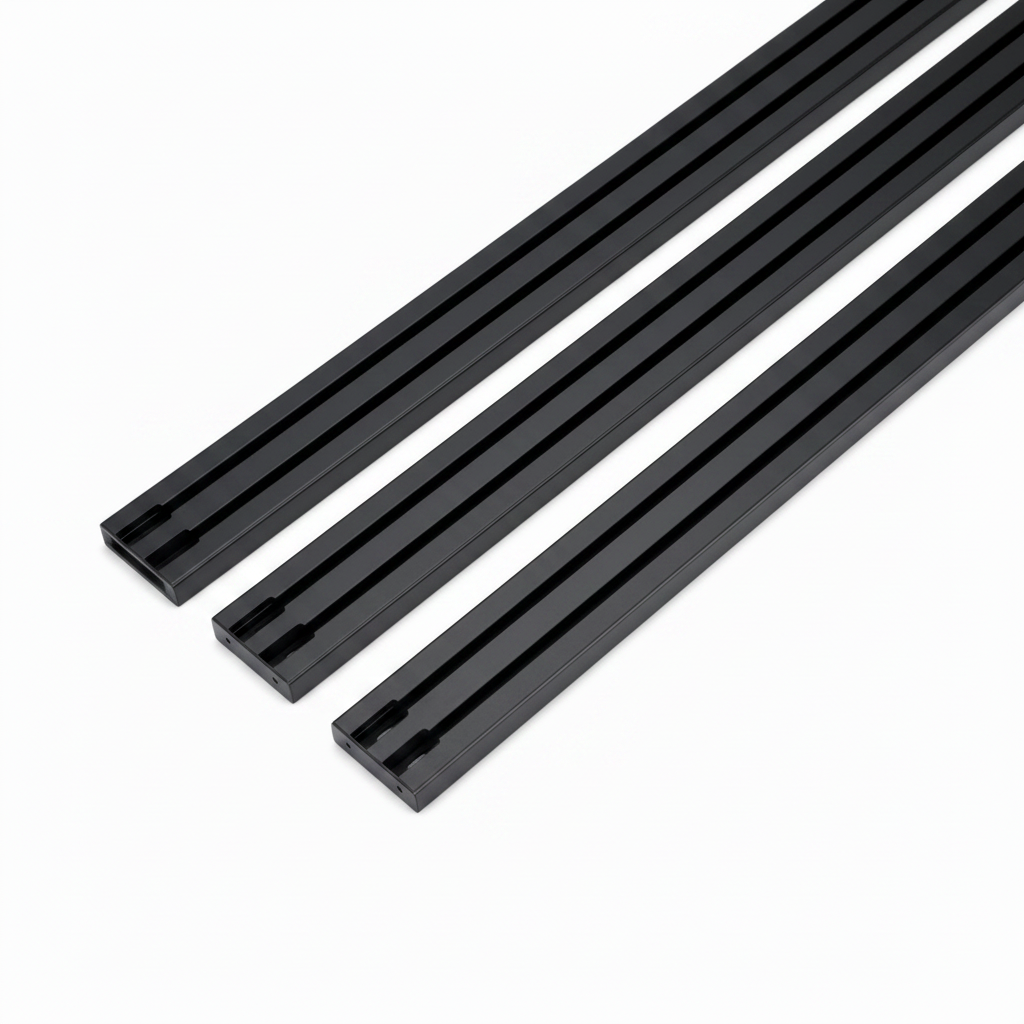

1450 Roof Rack Cross Bars

Specifications

• Product type: Roof rack cross bars
• Set: 2 or 3 cross bars (selected at checkout)

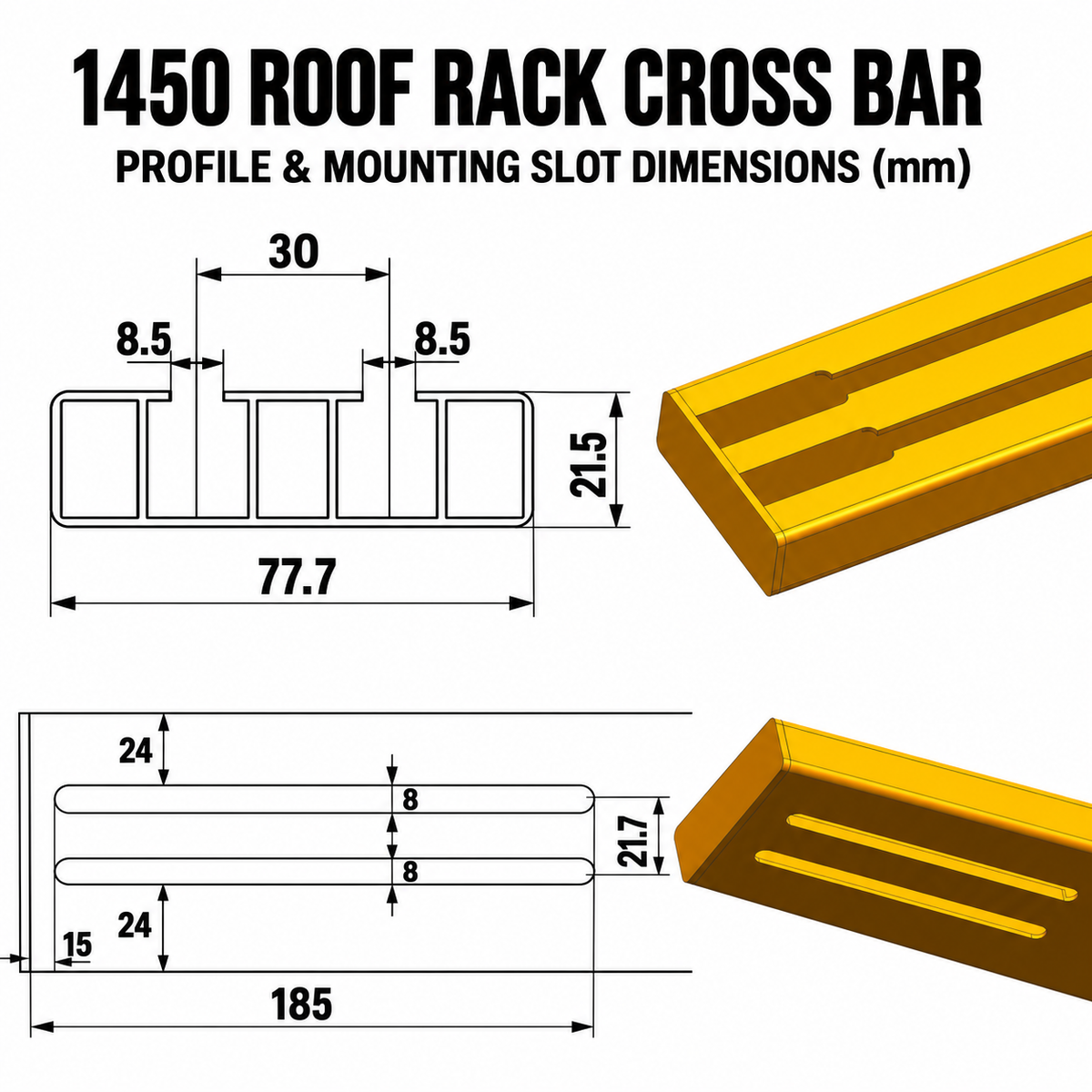

• Cross bar dimensions: 1,450 × 80 × 23 mm each (L × W × H)
• Material: Aluminium alloy
• Colour: Black
• Mounting options: Direct Mount, Flush Roof Rails or Raised Roof Rails
• Roof rail measurement: 1,200–1,400 mm outside-to-outside for compatible Flush or Raised roof rails
• Bar weight: 1.7 kg each, excluding mounting feet
• Dynamic load rating: 150 kg for the cross bars and supplied mounting feet, when applicable
• Static load rating: 300 kg for the cross bars and supplied mounting feet while the vehicle is stationary, when applicable
• Packed dimensions: 1,550 × 120 × 120 mm (L × W × H)
• Shipping weight: 6 kg for 2 crossbars or 8 kg for 3 crossbars

Choose Your Mounting Type

Direct Mount: Includes the selected 2- or 3-crossbar set without Flush or Raised roof-rail brackets. Choose this option only for a compatible existing rack, canopy, backbone-style system or direct mounting arrangement. The installer must verify the attachment hardware, mounting points and complete load path.

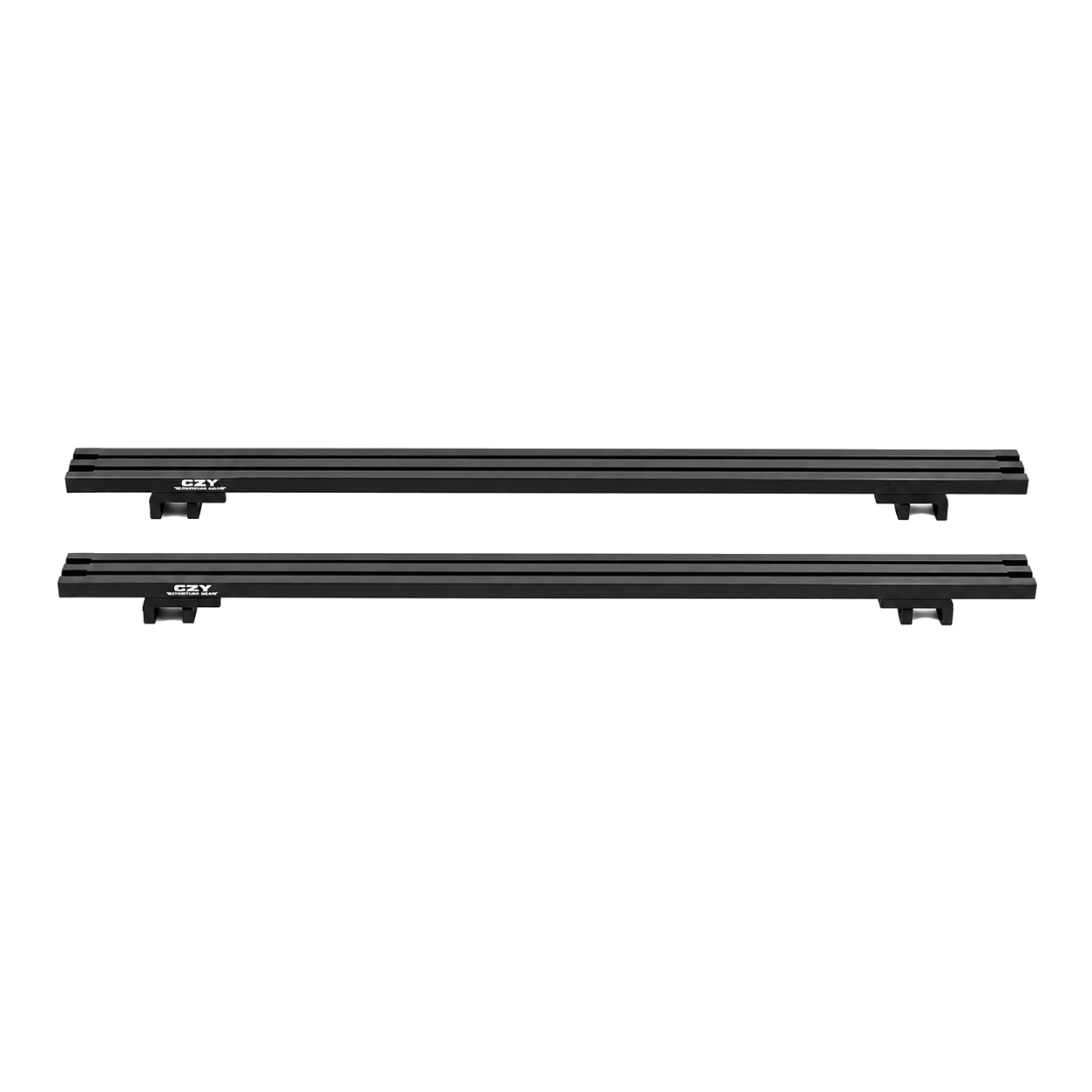

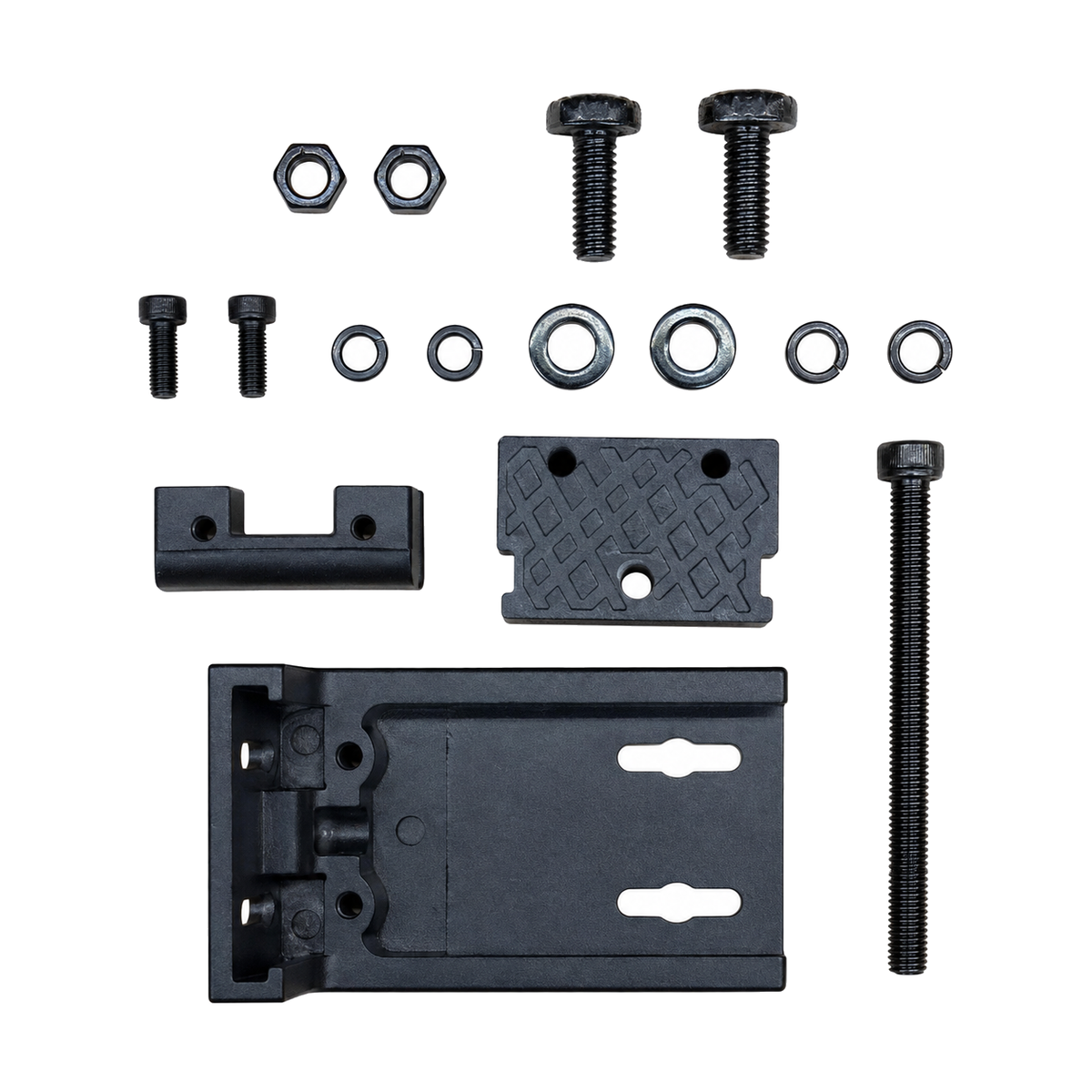

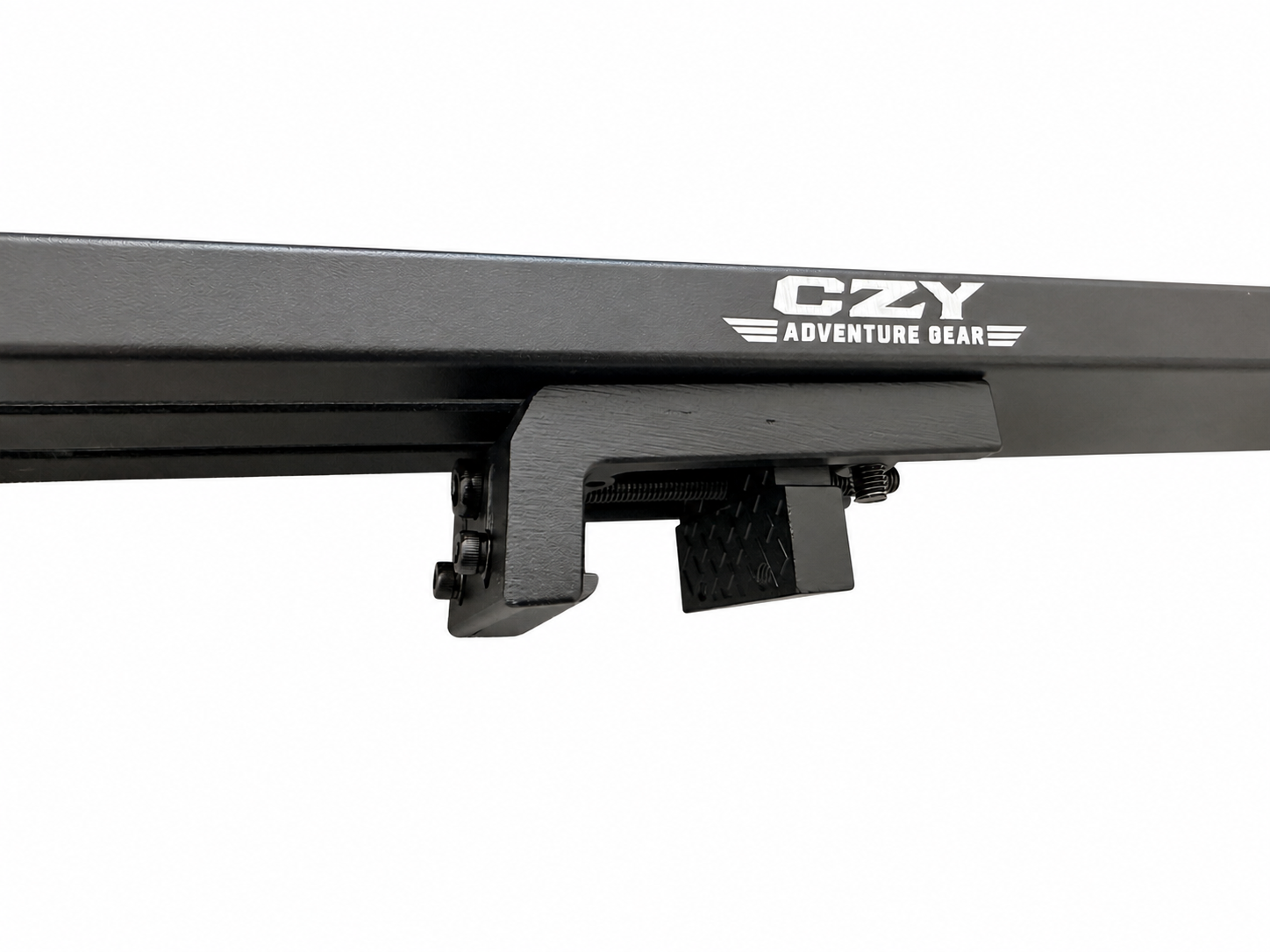

Flush Roof Rails: Includes the selected 2- or 3-crossbar set, with two matching flush-rail mounting feet per crossbar (four feet for 2 crossbars or six feet for 3 crossbars), plus mounting fasteners. Choose this option when the factory longitudinal rails sit against or very close to the roof, with no usable gap underneath and a compatible side or under-edge clamping profile.

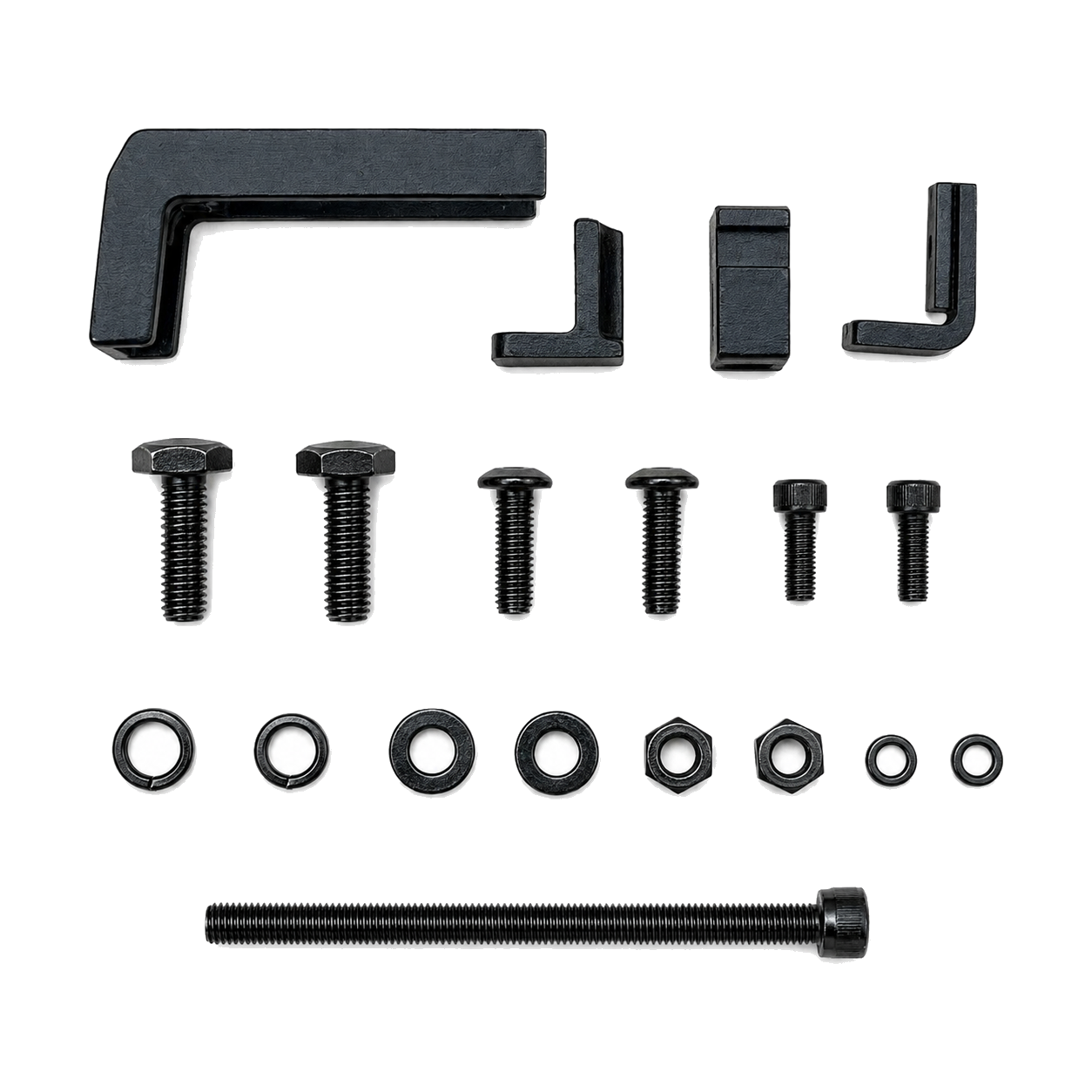

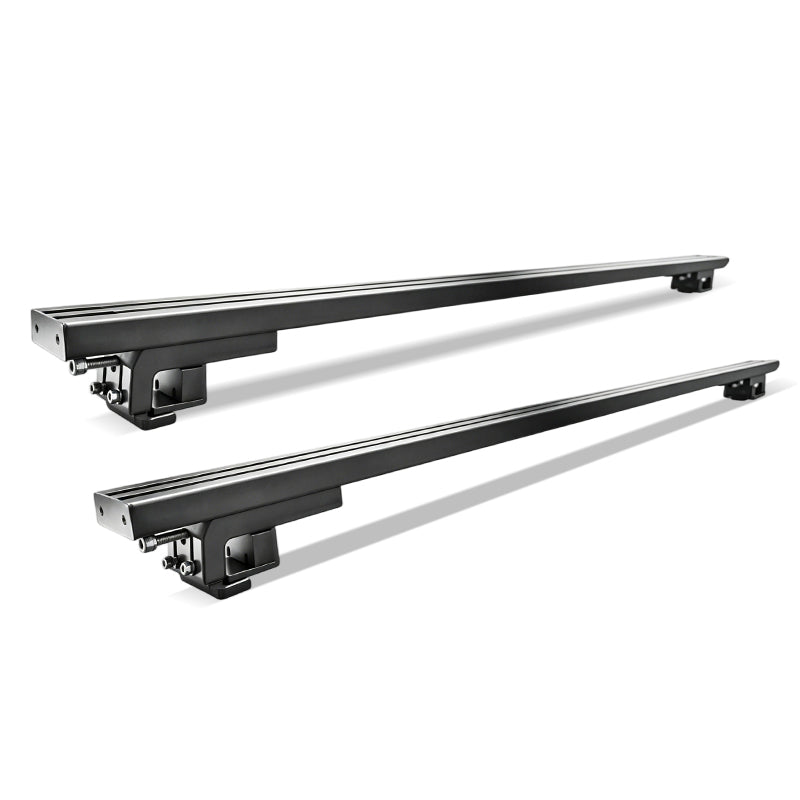

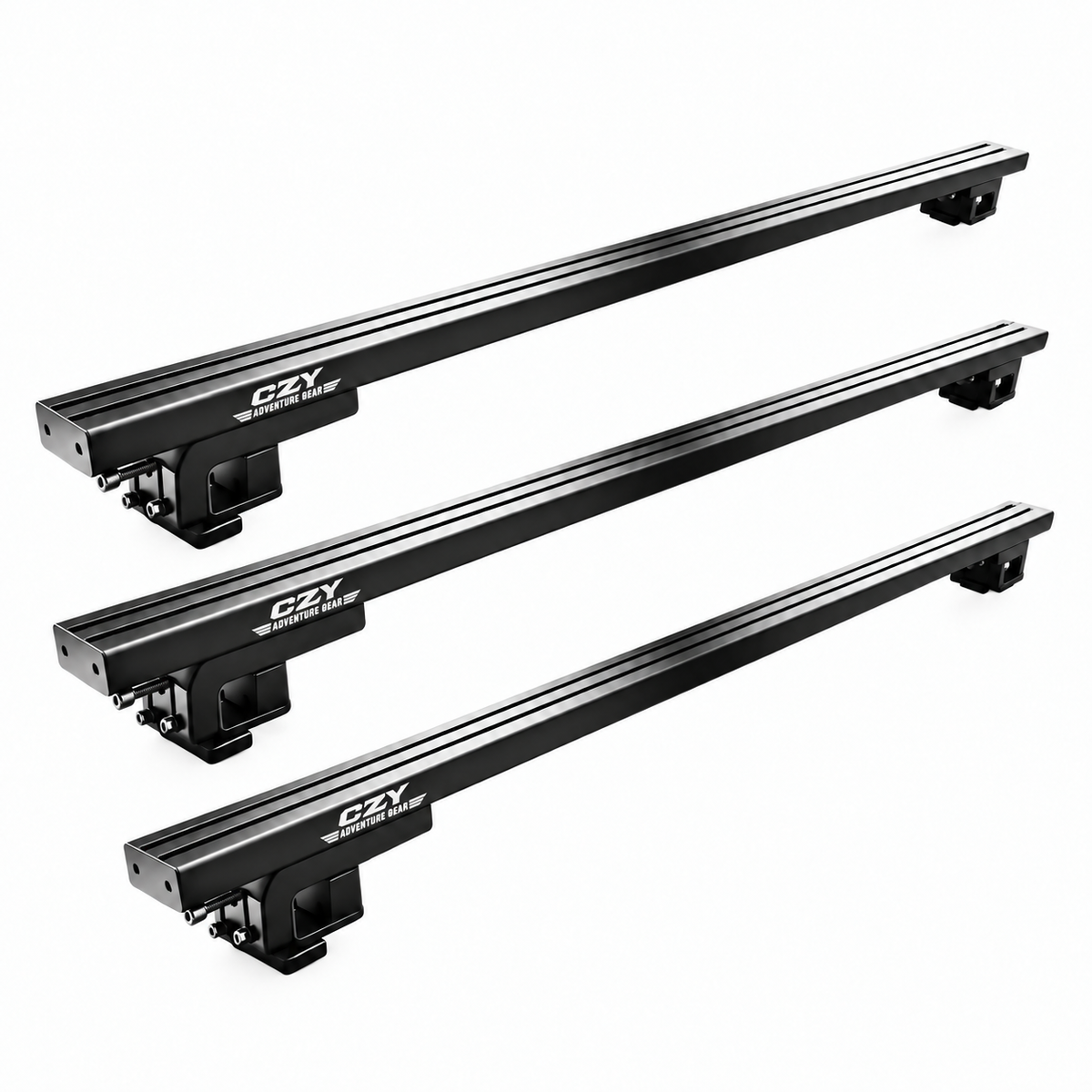

Raised Roof Rails: Includes the selected 2- or 3-crossbar set, with two matching raised-rail mounting feet per crossbar (four feet for 2 crossbars or six feet for 3 crossbars), plus mounting fasteners. Choose this option when there is a clear, usable gap beneath the factory longitudinal rails.

One Cross-Bar Platform, Three Mounting Options

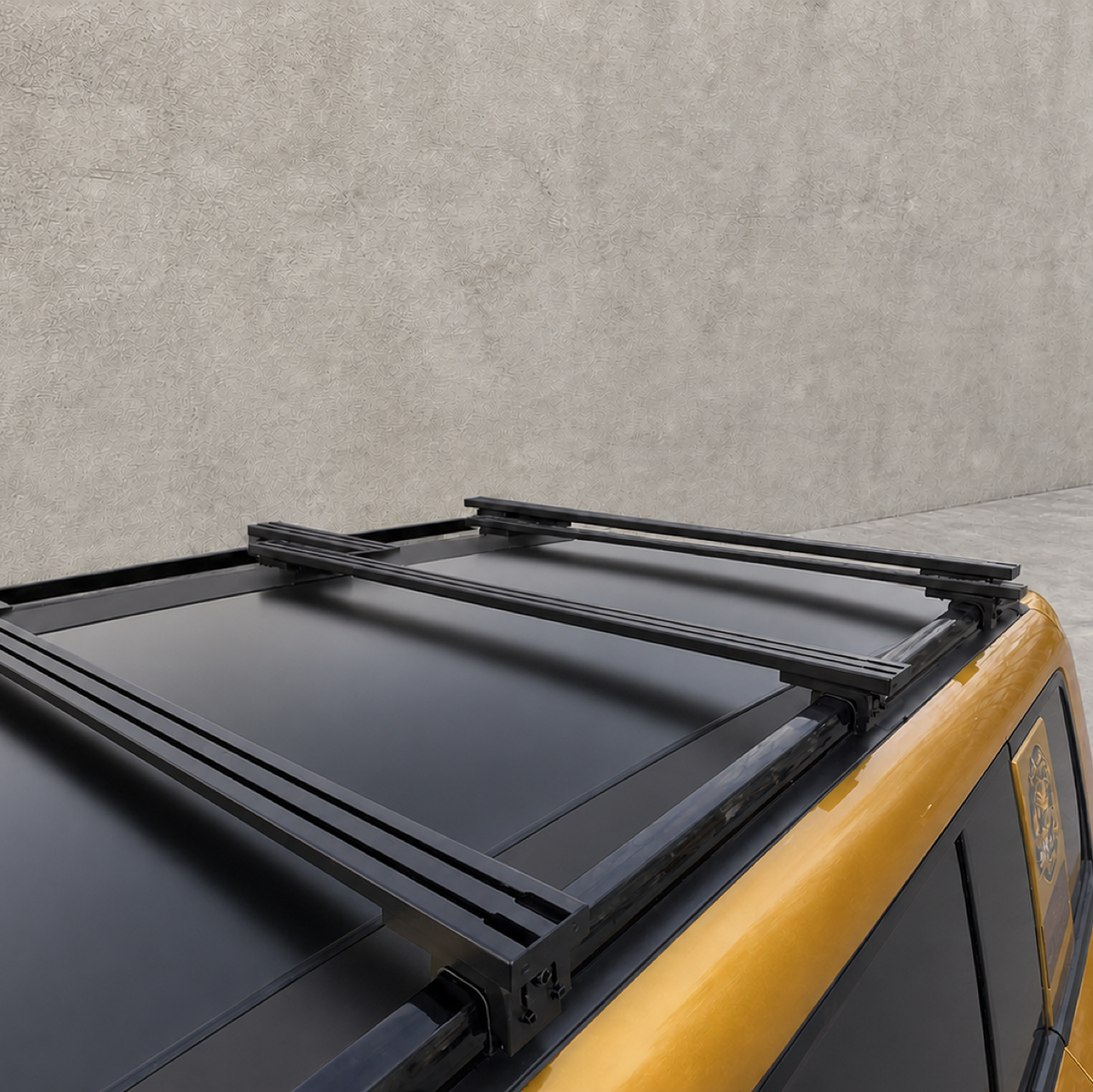

The 1450 Roof Rack Cross Bars provide a broad, low-profile mounting platform for compatible SUVs, 4WDs, wagons, canopies and touring setups. Select the mounting configuration that matches the existing structure on the vehicle.

Use the cross bars as a mounting base for compatible roof boxes, luggage carriers, bike or kayak carriers, awnings and other touring accessories, subject to the accessory mounting requirements and the verified load limits of the complete vehicle-and-rack system.

Key Features

• 1,450 mm cross-bar length: Suited to wider touring vehicles and compatible canopy or rack systems.
• Low-profile bar: The 80 mm wide × 23 mm high profile provides a broad mounting surface without unnecessary height.

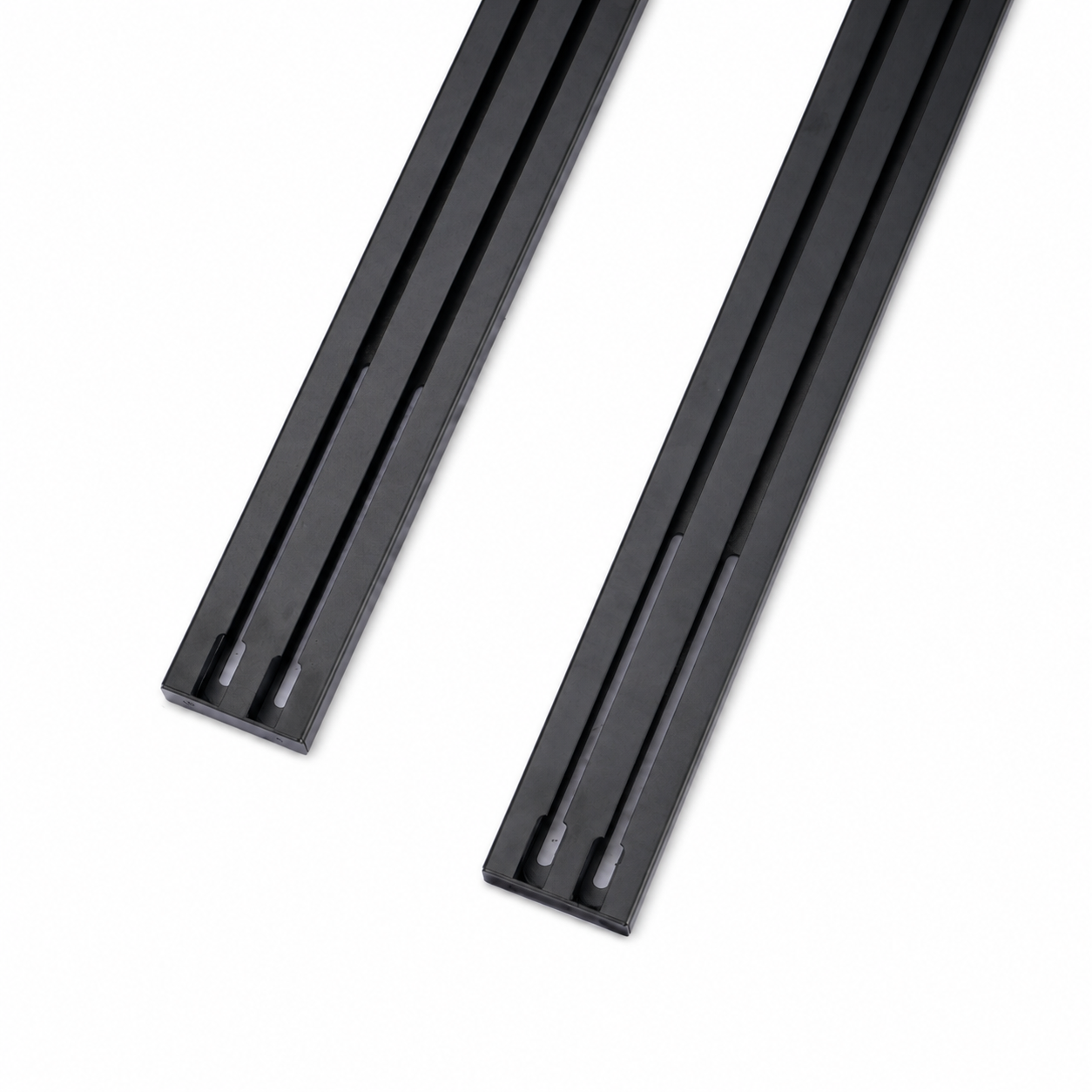

• Accessory mounting channels: Longitudinal channels provide mounting points for compatible accessory hardware.
• Three mounting choices: Buy the bars alone for a compatible direct-mount setup, or select the matching Flush or Raised roof-rail kit.
• Black finish: A clean finish suited to common 4WD, SUV and canopy installations.

Fitment Check Before Ordering

1. Identify whether the installation is Direct Mount, Flush Roof Rails or Raised Roof Rails.
2. For roof-rail installations, measure outside edge to outside edge at both intended cross-bar positions. Each measurement must fall between 1,200 and 1,400 mm.
3. For Direct Mount installations, confirm the mounting-point spacing, compatible hardware and load-bearing structure with the installer.
4. Send us the vehicle year, make, model and trim, a full roof or canopy photo, close-up mounting photos and measurements if you need a fitment check.

Roof, canopy and rail designs can vary by model year, trim grade and installer. Compatibility is determined by the actual structure, profile and measurements—not the vehicle badge alone.

Important Load Information

The stated ratings apply to the cross bars and supplied mounting feet, when selected, only when correctly installed and the load is evenly distributed. They do not certify or increase the capacity of the vehicle roof, factory rails, canopy, backbone, mounting points or fitted accessory.

Every part of the complete system has its own limit. Never exceed the lowest applicable limit, and remember that the vehicle or canopy load limit normally includes the weight of the rack system. Check the applicable manufacturer instructions and follow any lower limit specified for off-road driving.
